What is a busbar duct?
A busbar duct is a closed metal device composed of copper and aluminum busbar columns, mainly used to distribute large power to various circuits of a distributed system. As a new type of power distribution device, bus duct has the advantages of high current carrying capacity, high mechanical strength, convenient and flexible installation, and energy saving. It can replace traditional cables and is widely used in important occasions such as high-rise buildings, industrial plants, airports, and stations.

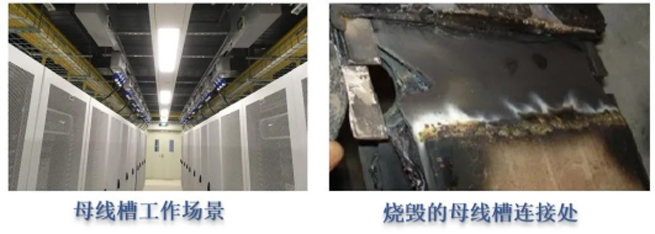

Due to the compact structure of the busbar duct and the use of copper bar compression method, there are high requirements for heat dissipation and insulation performance. If the temperature of the busbar contact point is too high, it will accelerate its insulation aging and even cause a fire. Usually, there are hundreds or even thousands of connection points in the bus duct of a power supply system. Any overheating failure at one connection point can cause significant safety accidents. To avoid such accidents, it is necessary to establish an online monitoring system for the temperature status of bus ducts with warning functions.
At present, the driving control of bus ducts mainly relies on manual handheld infrared thermometers or distributed fiber optic thermometers, which have problems such as high construction difficulty, poor measurement accuracy, low efficiency, and inability to adapt to the complex application environment of buses.
The latest Sferro702 series bus duct temperature monitoring system developed by Jiangsu Sifel Electric adopts a modular design and a 10 inch large screen display, which can achieve real-time online temperature monitoring at multiple points. When the temperature of the bus duct contact is too high, the bus is overloaded, the insulation layer is aged, and other abnormalities are caused, an alarm can be triggered in a timely manner to avoid safety hazards caused by overheating of the bus duct and ensure the safe operation of the entire electrical system.
A solution for intelligent bus duct temperature measurement system
Plan One
Option 2

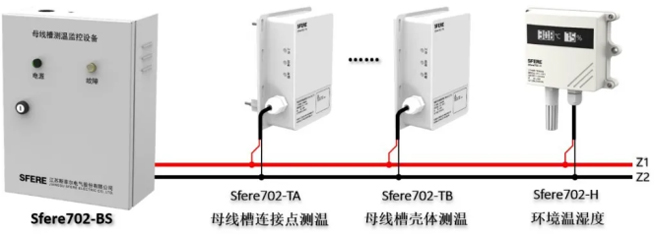

Intelligent bus duct temperature measurement system

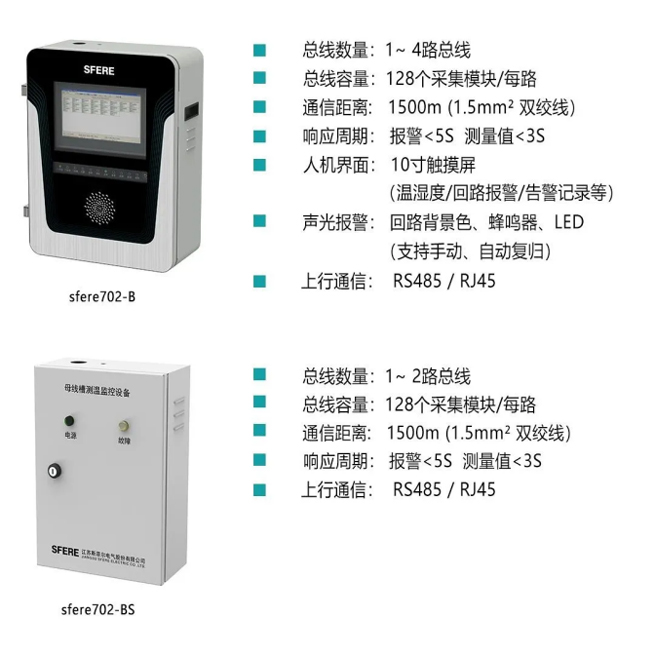

Monitoring host
Intelligent bus duct temperature measurement system

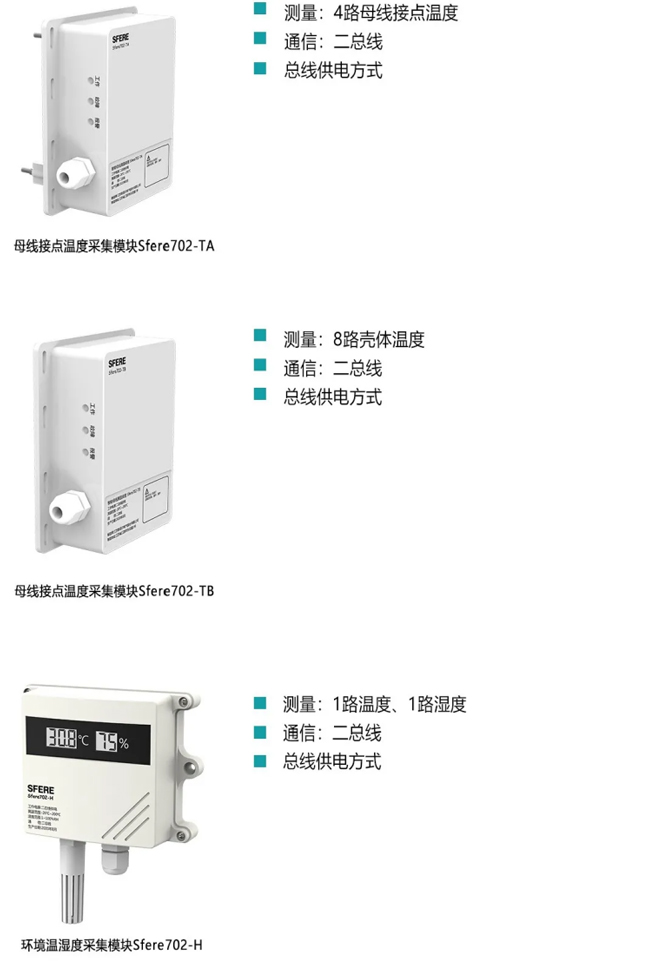

Collection module
Product Features
Safe electricity use, intelligent warning. Empowering intelligent bus monitoring and power operation and maintenance
Flexible structure and strong adaptability. Suitable for monitoring bus ducts from different manufacturers
Plug and play, flexible deployment. Simple and convenient construction wiring
Reliable performance and safe operation. Waterproof, dustproof, insulated, and resistant to electromagnetic interference.
Electricity is a trivial matter, safety comes first, and the application and management environment of electrical equipment is becoming increasingly complex and variable. The operation of the intelligent bus duct temperature measurement system will be designed with more efficient, reliable, and intelligent functions, providing a solid guarantee for the safe electricity consumption and efficient production of industry users and partners.
Jiangsu Sifei Electric adheres to the development concept of independent innovation, creating value for every customer with excellent research and development, high-quality products, and efficient services. At present, the intelligent measurement and control series products are about to be put into use. You are welcome to call us for consultation or come to our company for further understanding and communication. Sifel Electric looks forward to working hand in hand with you, moving forward side by side, and creating a better future for Electric!
