JIANGSU ELECNOVA ELECTRIC CO., LTD.
Miniature Circuit Breaker SFB3-100 Series

Miniature Circuit Breaker SFB3-100 Series

Introduction

SFB3-100 series high breaking miniature circuit breakers are applicable to places with AC 50Hz or 50Hz, rated working voltage of 400V and below, and rated current of 10A-100A. They are mainly used for overload and short circuit protection of lighting, distribution lines and equipment in office buildings, residential buildings and similar buildings, and can also be used for infrequent line switching under normal conditions.

Miniature Circuit Breaker SFB3-100 Series Feature
Feature
Small size
High flame retardancy
Easy to install
Long life
Dimension
Technical Specification
Model Selection

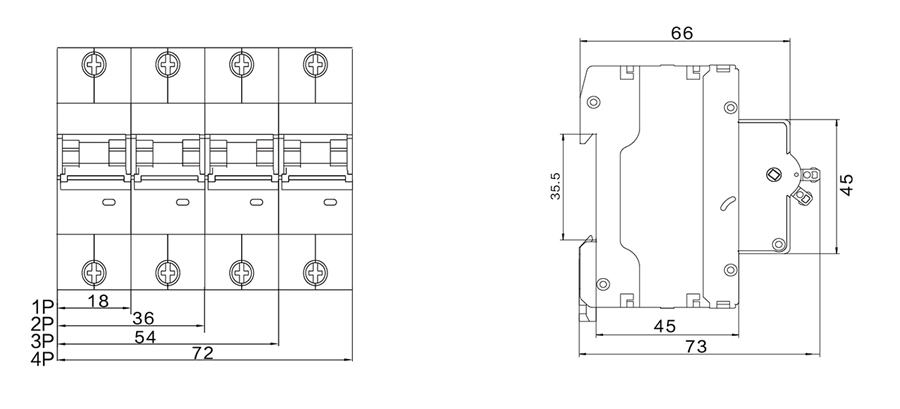

Miniature Circuit Breaker SFB3-100 Series Dimension

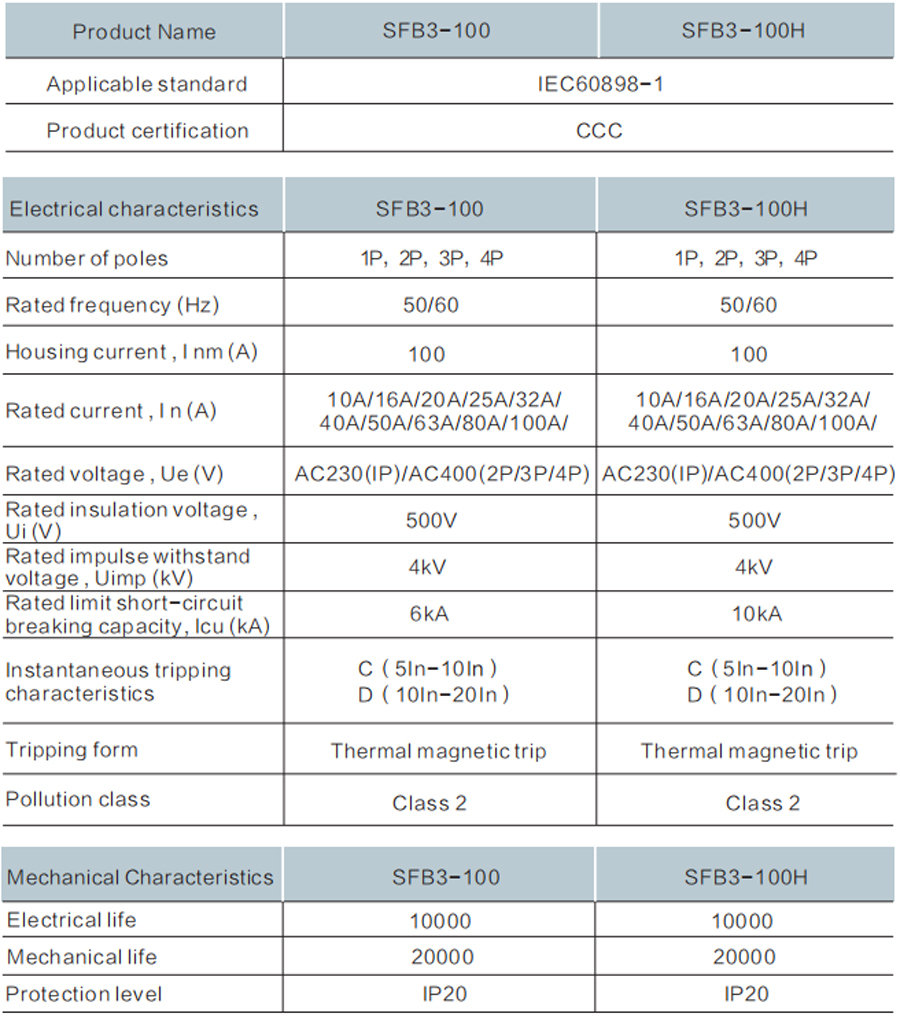

Miniature Circuit Breaker SFB3-100 Series Technical Specification

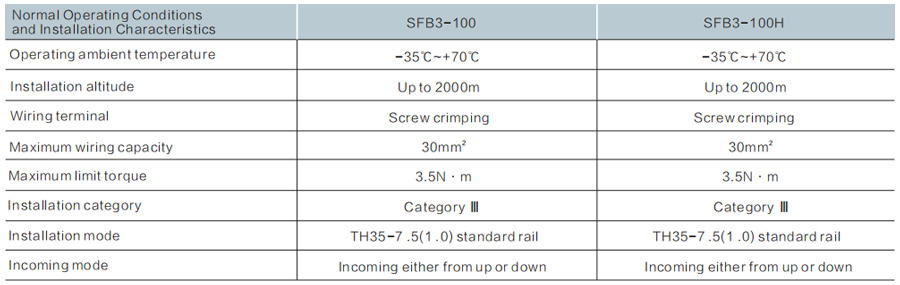

Miniature Circuit Breaker SFB3-100 Series Technical Specification 2

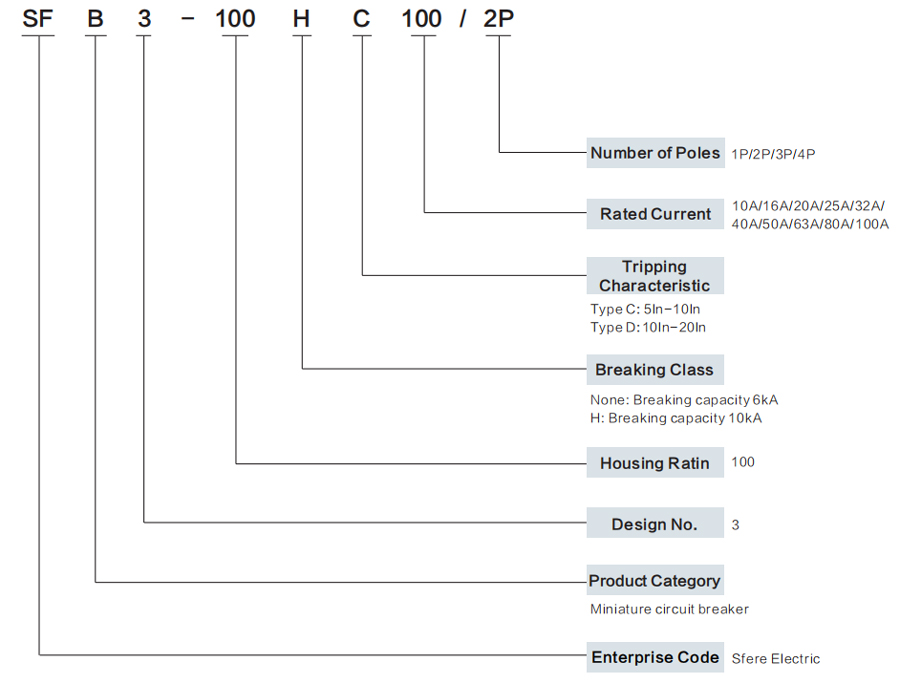

Miniature Circuit Breaker SFB3-100 Series Model Selection

Contact Info
