WGK-31-203 Intelligent Reactive Power Compesation Controller

WGK-31-203 Intelligent Reactive Power Compesation Controller

Introduction

WGK-31-203 adopts AC sampling algorithm and advanced control algorithm to switch the harmonic suppression low-voltage power capacitor module SFR-M to improve the power factor of the power grid.

WGK-31-203 Intelligent Reactive Power Compesation Controller Feature
Feature
Real time measurement
Flexible switching
Harmonic protection function
Function Features
Dimension

Real-time measurement

Voltage, current, power factor, active power, reactive power, harmonic voltageHarmonic current, frequency, capacitor switching state, temperature and other parameters


Flexible switching

Support manual/automatic switching mode


Communication

RS485 interface, Modbus-RTU communication protocol

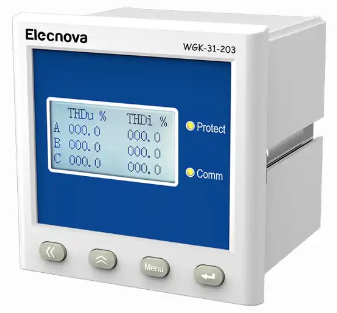

WGK-31-203 Intelligent Reactive Power Compesation Controller Function Features

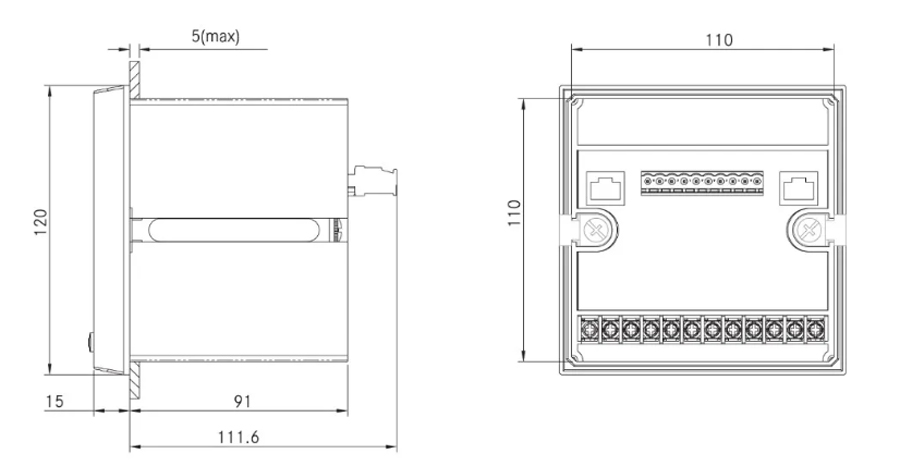

WGK-31-203 Intelligent Reactive Power Compesation Controller Dimension
