WDH-31-580 Motor Protection Controller

WDH-31-580 Motor Protection Controller

Introduction

WDH-31-580 motor protection controller can supply up to 12 channels of inclined switch input (dry s wet contact optional). 8-way programmable wall electric passenger output, all input and output have programmable functions, and all protection functions can be set with alarm value and action value at the same time, and can be switched on and off respectively according to different protection control requirements at the full site. The protection parameters can be set by professionals according to the actual working conditions of the motor on site.

WDH-31-580 Motor Protection Controller Feature
Feature
21 protection functions
31th harmonic measurement
Support anti-interference
Energy metering
Function
Technical Specification
Model Selection
Dimension
Typical Wiring

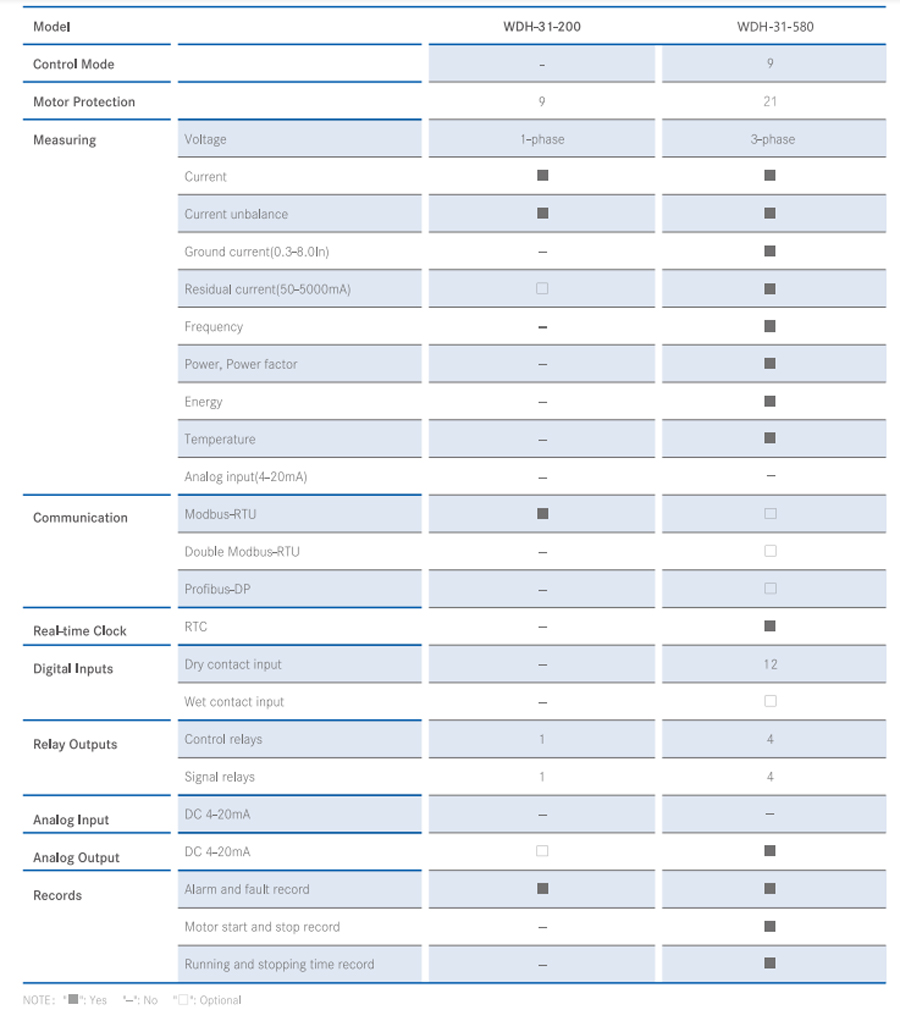

WDH-31-580 Motor Protection Controller Function

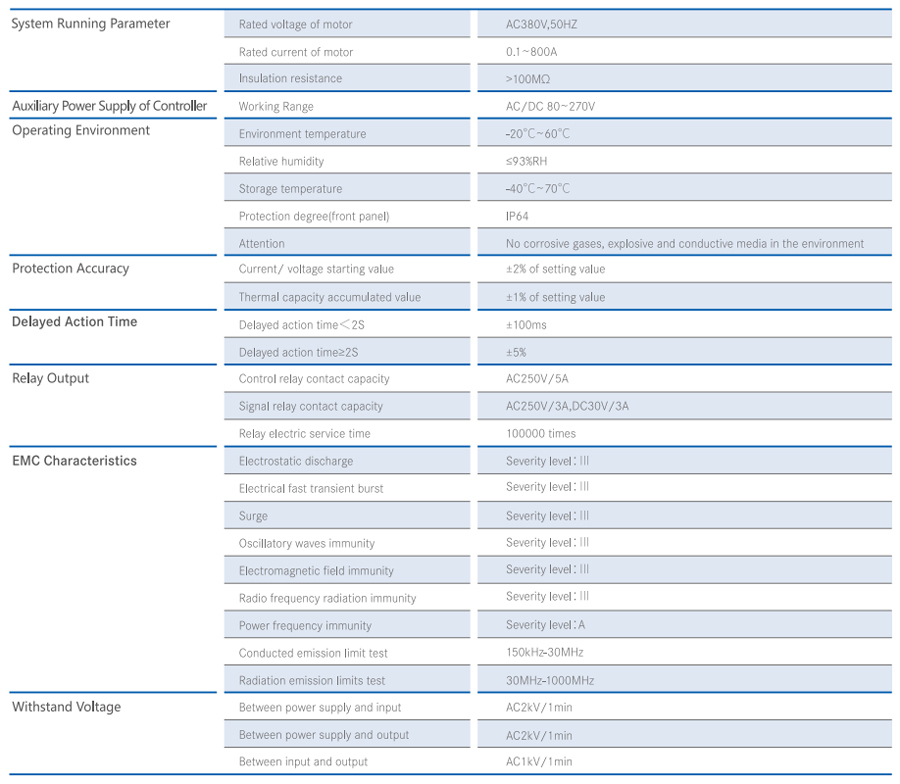

WDH-31-580 Motor Protection Controller Technical Specification

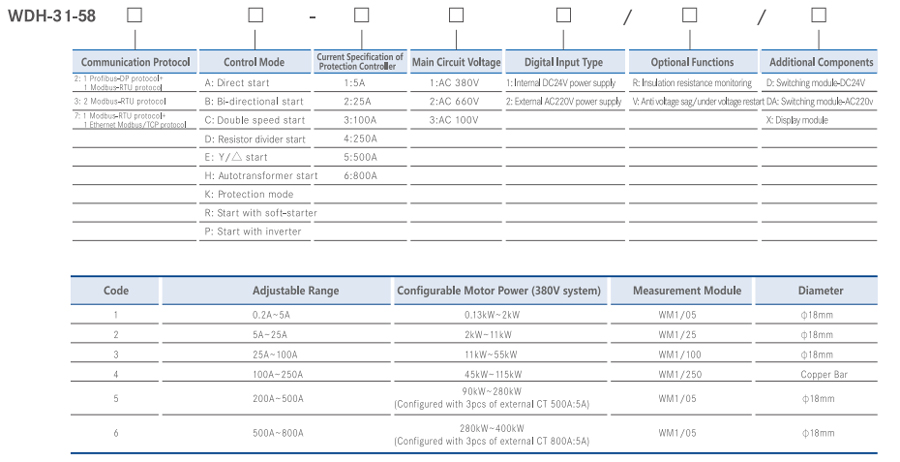

WDH-31-580 Motor Protection Controller Model Selection

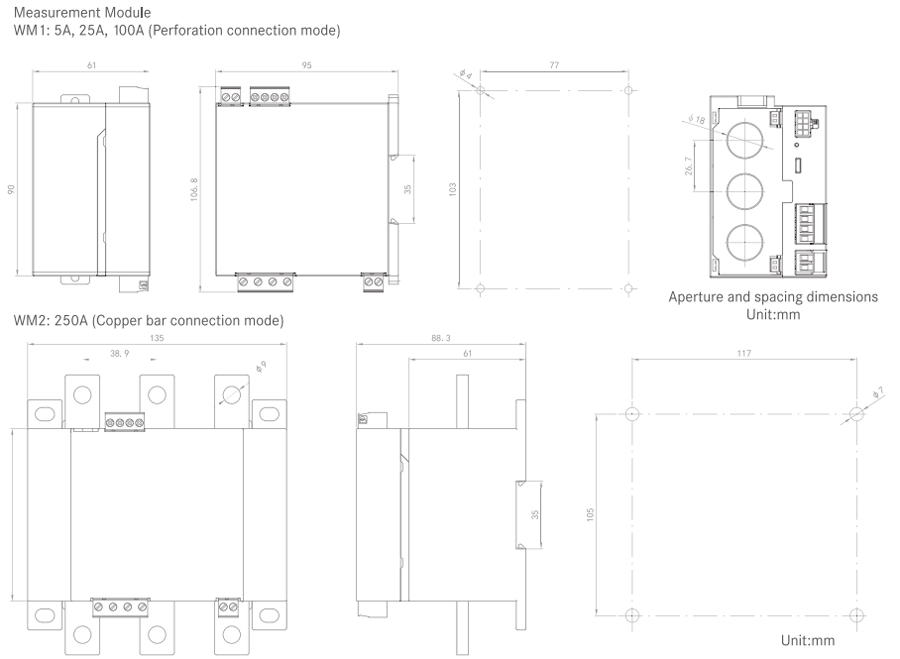

WDH-31-580 Motor Protection Controller Dimension

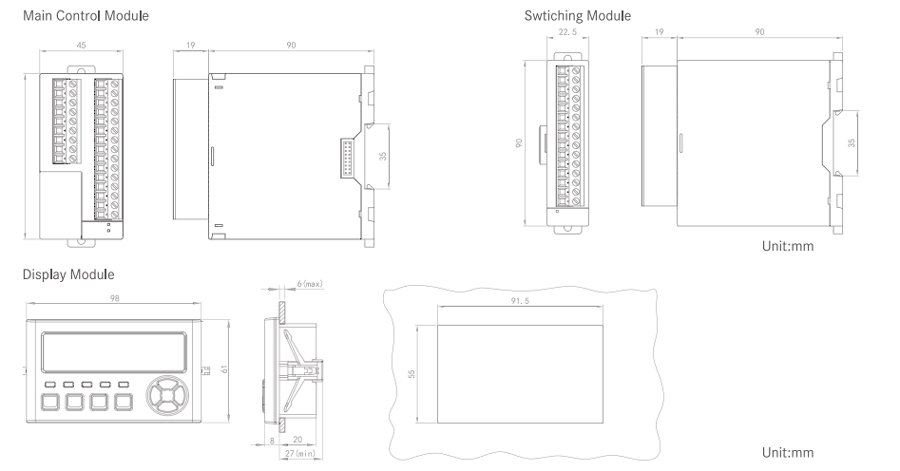

WDH-31-580 Motor Protection Controller Dimension 2

WDH-31-580 Motor Protection Controller Typical Wiring

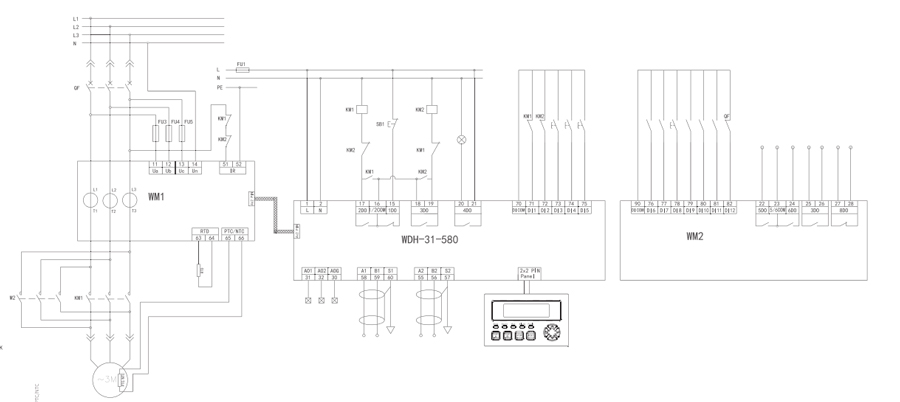

WDH-31-580 Motor Protection Controller Typical Wiring 2
