WDH-31-530 Series Motor Protection Controller

WDH-31-530 Series Motor Protection Controller

Introduction

WDH - 31-530 series motor protection controller (hereinafter referred to as controller) is applicable to three-phase low-voltage AC motor with rated frequency of 50/60Hz, rated voltage of 690 AC and rated current of 800 A. The product has the functions of monitoring, control, protection and communication to provide perfect protection and control for the motor.The controller consists of three parts: the controller body, the protective current transformer module and the display module; The controller body and the transformer are installed and used as a whole.

WDH-31-530 Series Motor Protection Controller Feature
Feature
16 protection functions
Self provided residual current transformer
Chinese man-machine interface
Optional Ethernet communication connector
Function
Technical Specification
Dimension
Typical Wiring

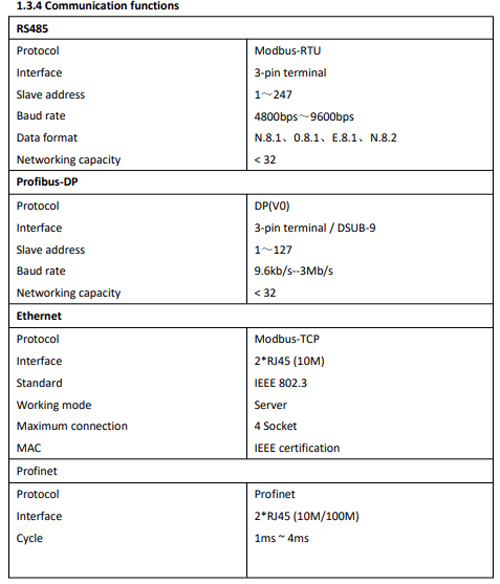

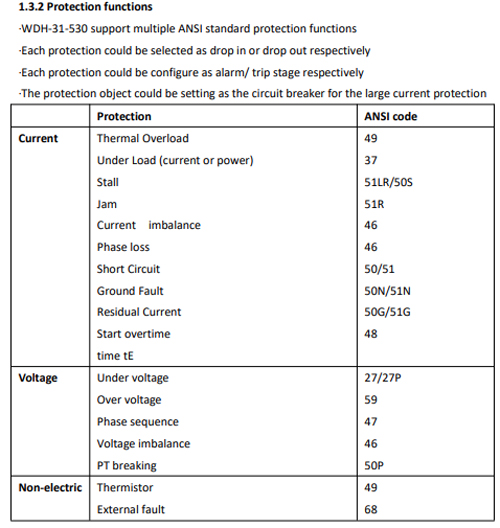

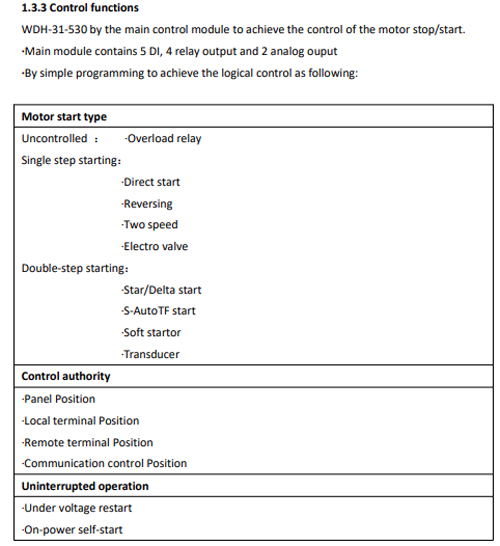

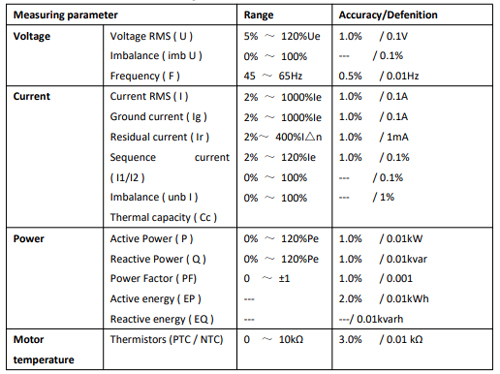

WDH-31-530 Series Motor Protection Controller Function

WDH-31-530 Series Motor Protection Controller Function 2

WDH-31-530 Series Motor Protection Controller Function 3

WDH-31-530 Series Motor Protection Controller Function 4

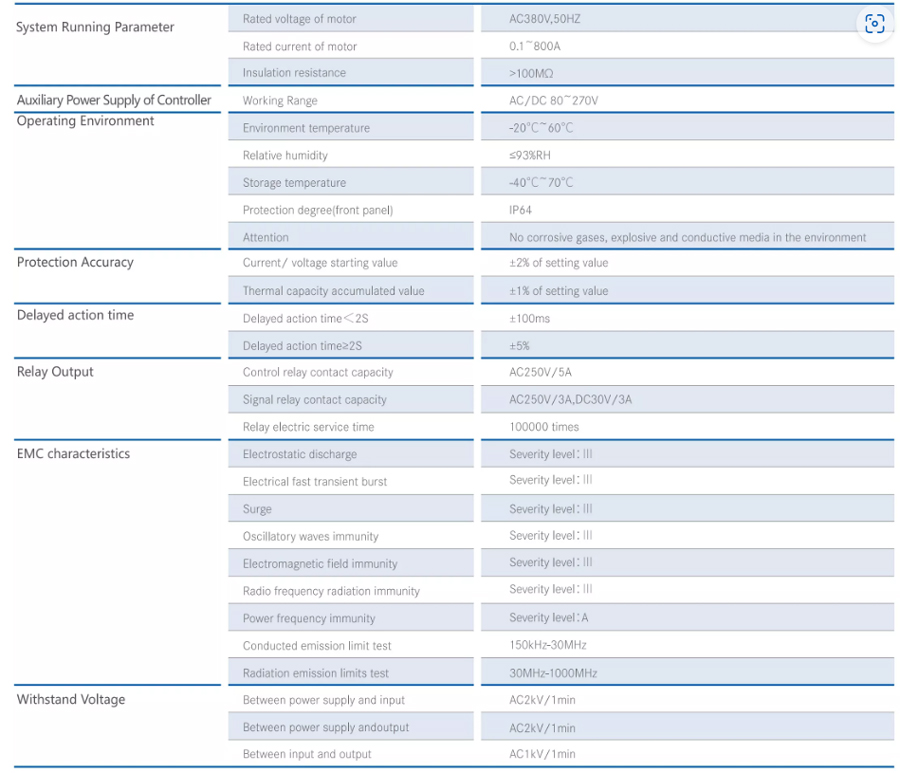

WDH-31-530 Series Motor Protection Controller Technical Specification

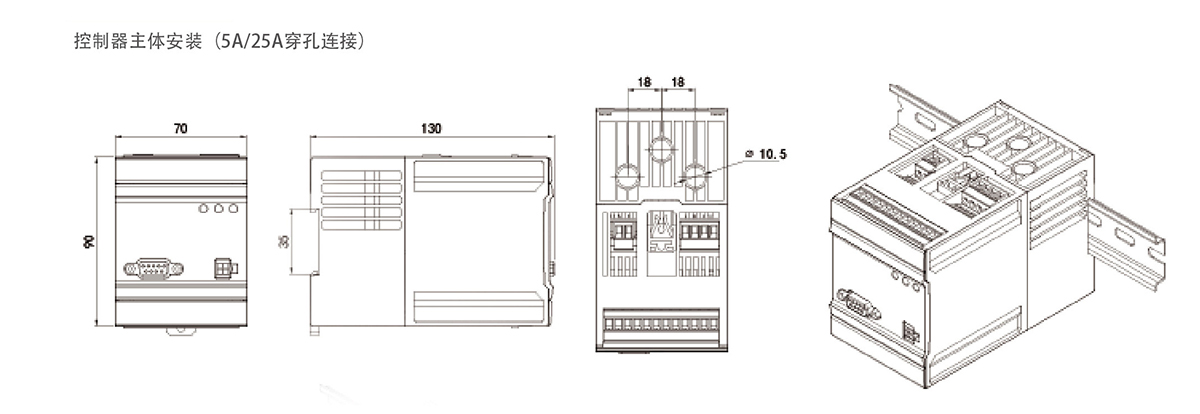

WDH-31-530 Series Motor Protection Controller Dimension

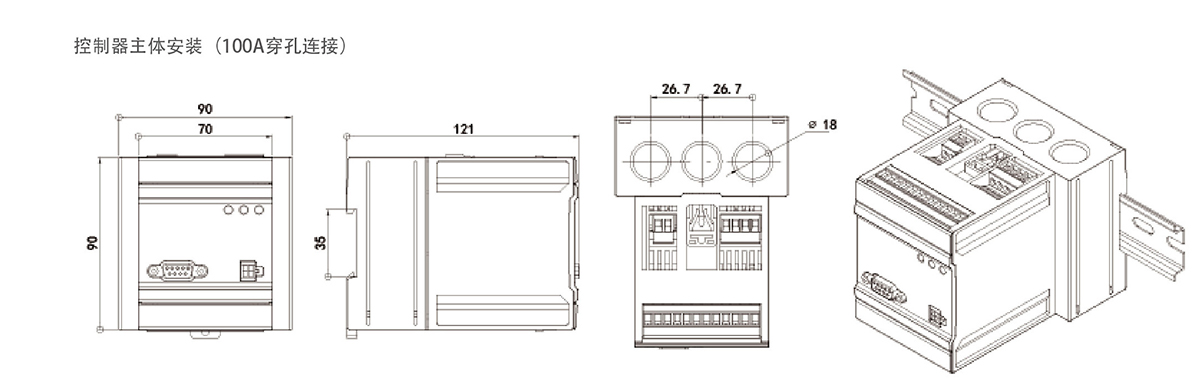

WDH-31-530 Series Motor Protection Controller Dimension 2

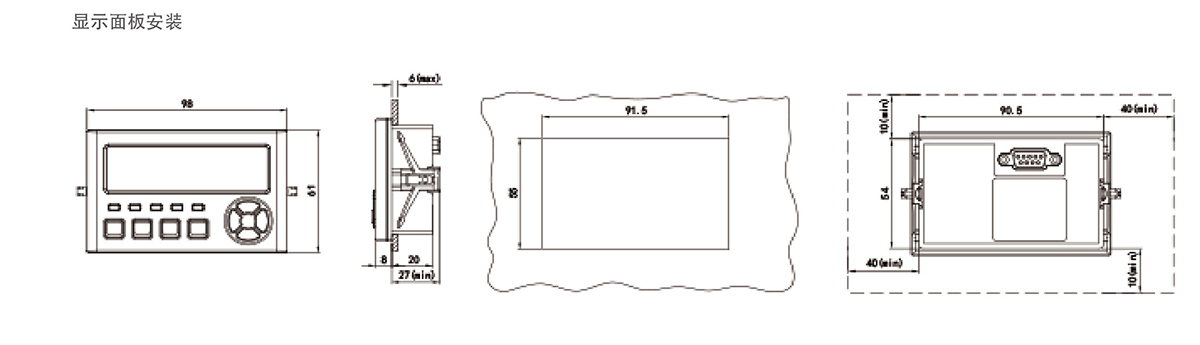

WDH-31-530 Series Motor Protection Controller Dimension 3

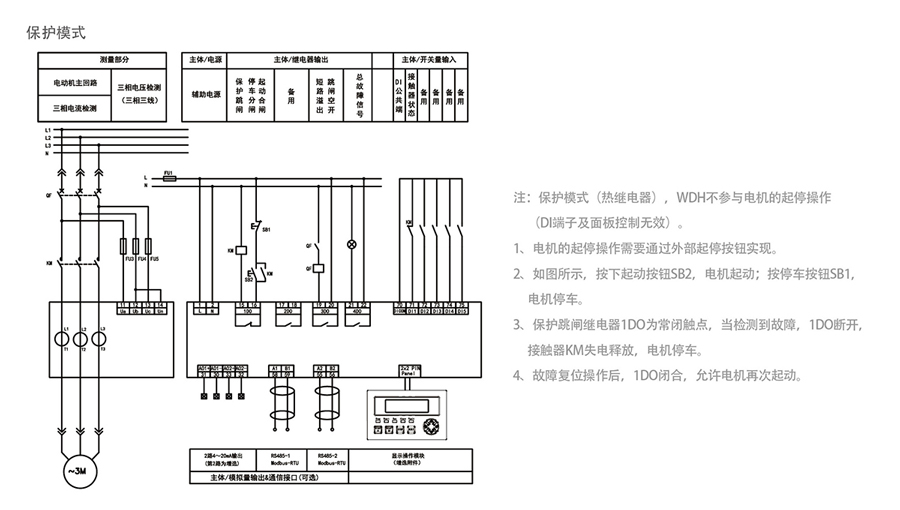

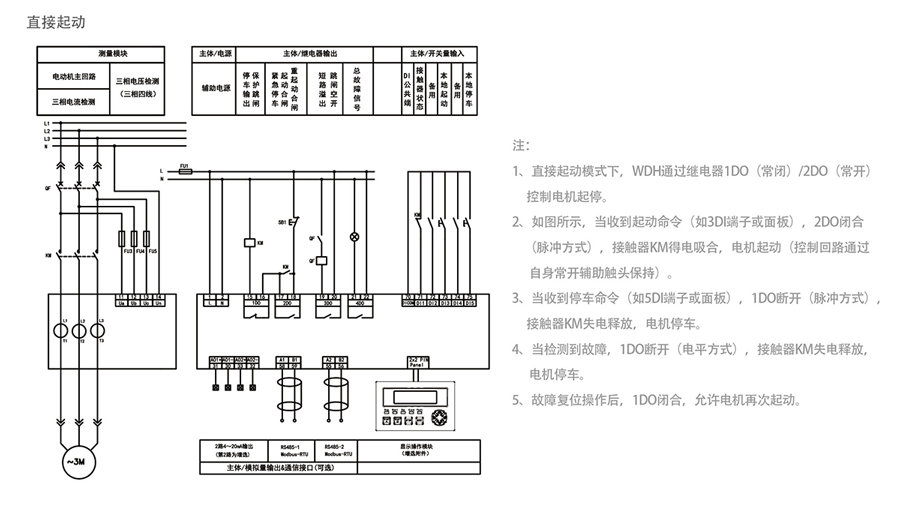

WDH-31-530 Series Motor Protection Controller Typical Wiring

WDH-31-530 Series Motor Protection Controller Typical Wiring 2
