Surge Protection Device SDX Series

Surge Protection Device SDX Series

Introduction

The surge protector SDX series products are applicable to the protection of indirect lightning or other transient over-voltage surges.

Dimension
Technical Specification
Typical Wiring

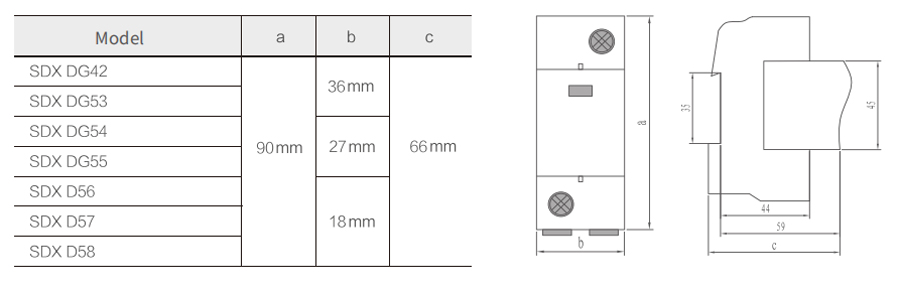

Surge Protection Device SDX Series Dimension

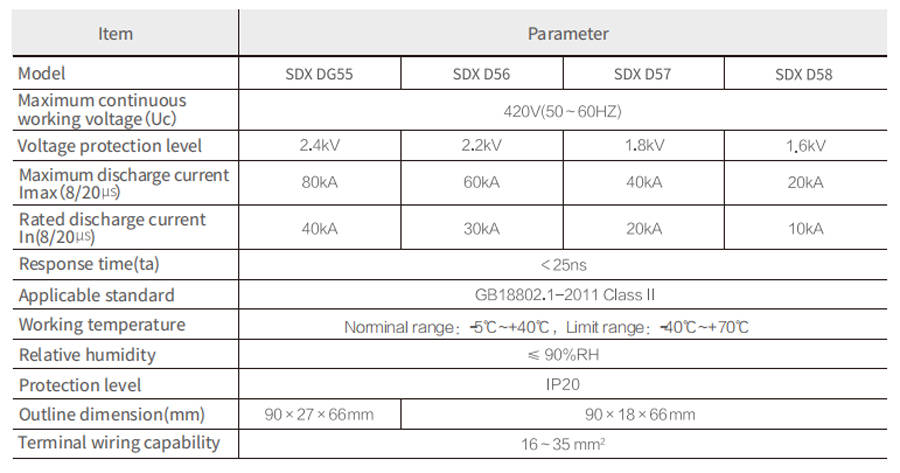

Surge Protection Device SDX Series Technical Specification

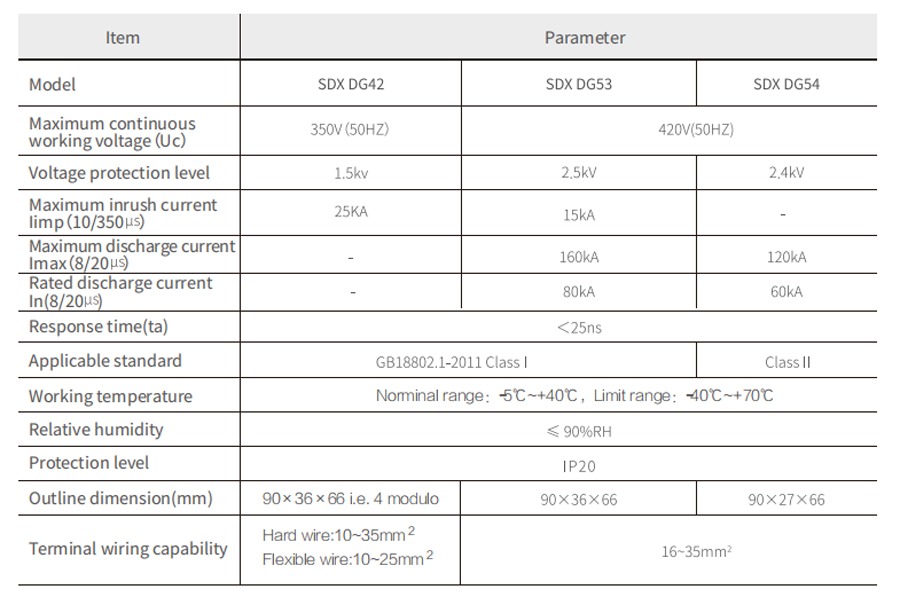

Surge Protection Device SDX Series Technical Specification 2

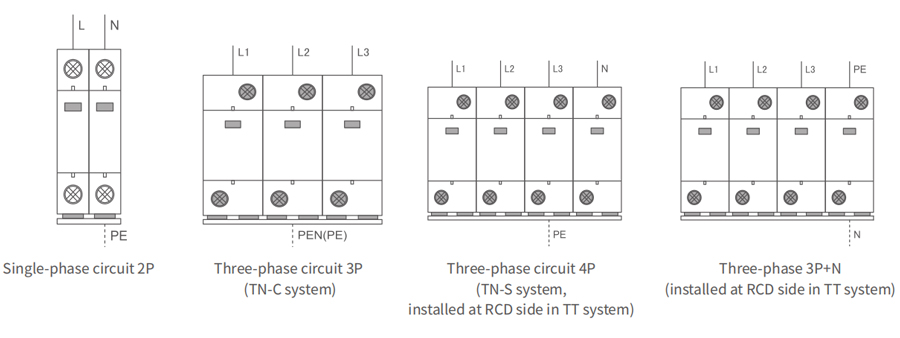

Surge Protection Device SDX Series Typical Wiring
