Rack Bus Monitoring Unit Elecnova701

Rack Bus Monitoring Unit Elecnova701

Introduction

Elecnova701 rack bus monitoring unit is a new generation of power monitoring product designed for smart rack bus of data center. It can realize real-time measurement of power parameters, power metering, power quality analysis, status monitoring and out of limit alarm of low-voltage distribution system. Leakage monitoring, humidity monitoring and other functions. Up to 32 three-phase circuits or 96 single-phase circuits can be measured. Equipped with a large color LCD and touch mode buttons, it is easy to use, compact and easy to install.

Rack Bus Monitoring Unit Elecnova701 Feature
Feature
Multi loop measurement
Automatic addressing
Centralized display of color liquid products
Compact design
Easy installation
System Structure
Model Selection
Technical Specification
Dimension

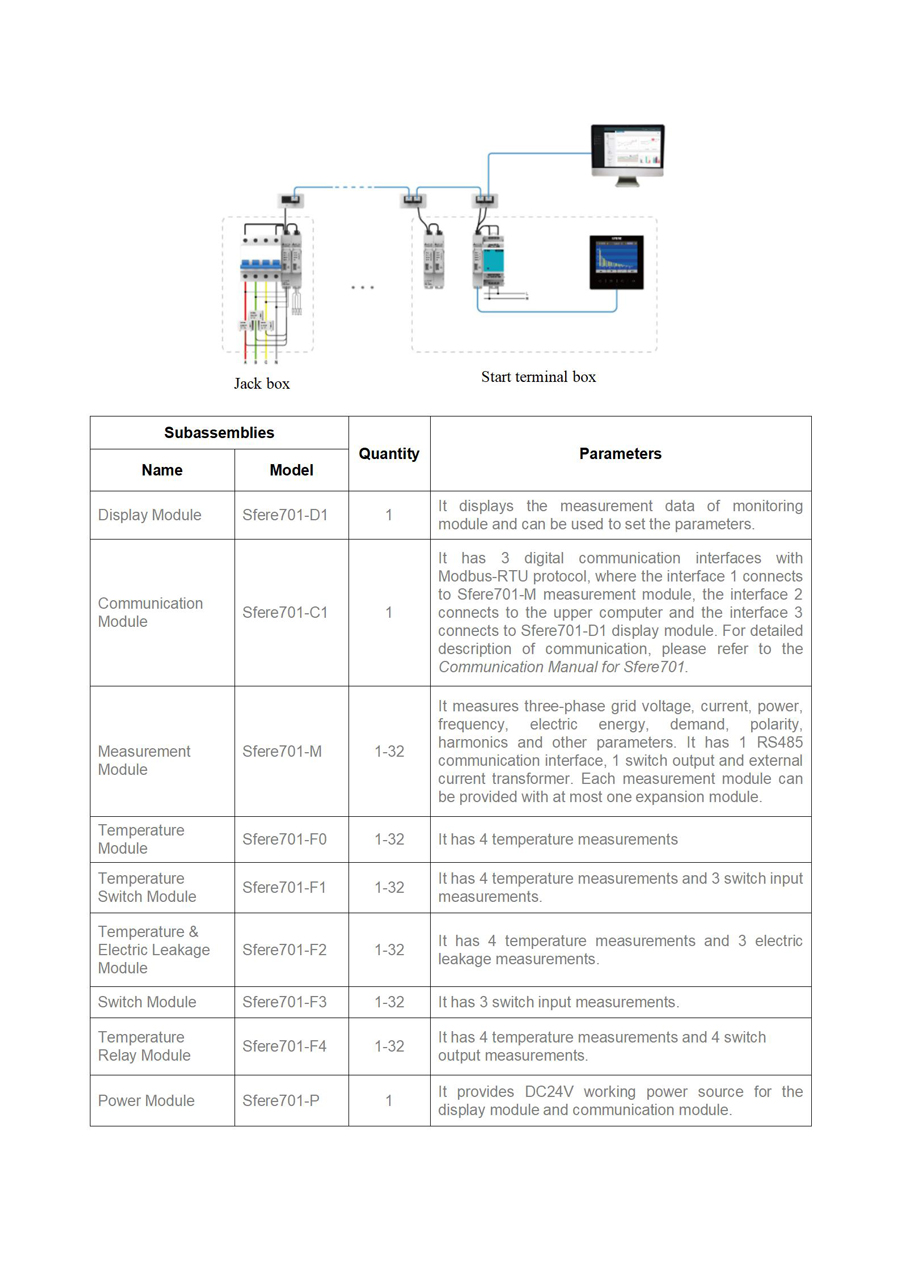

Rack Bus Monitoring Unit Sfere701 System Structure

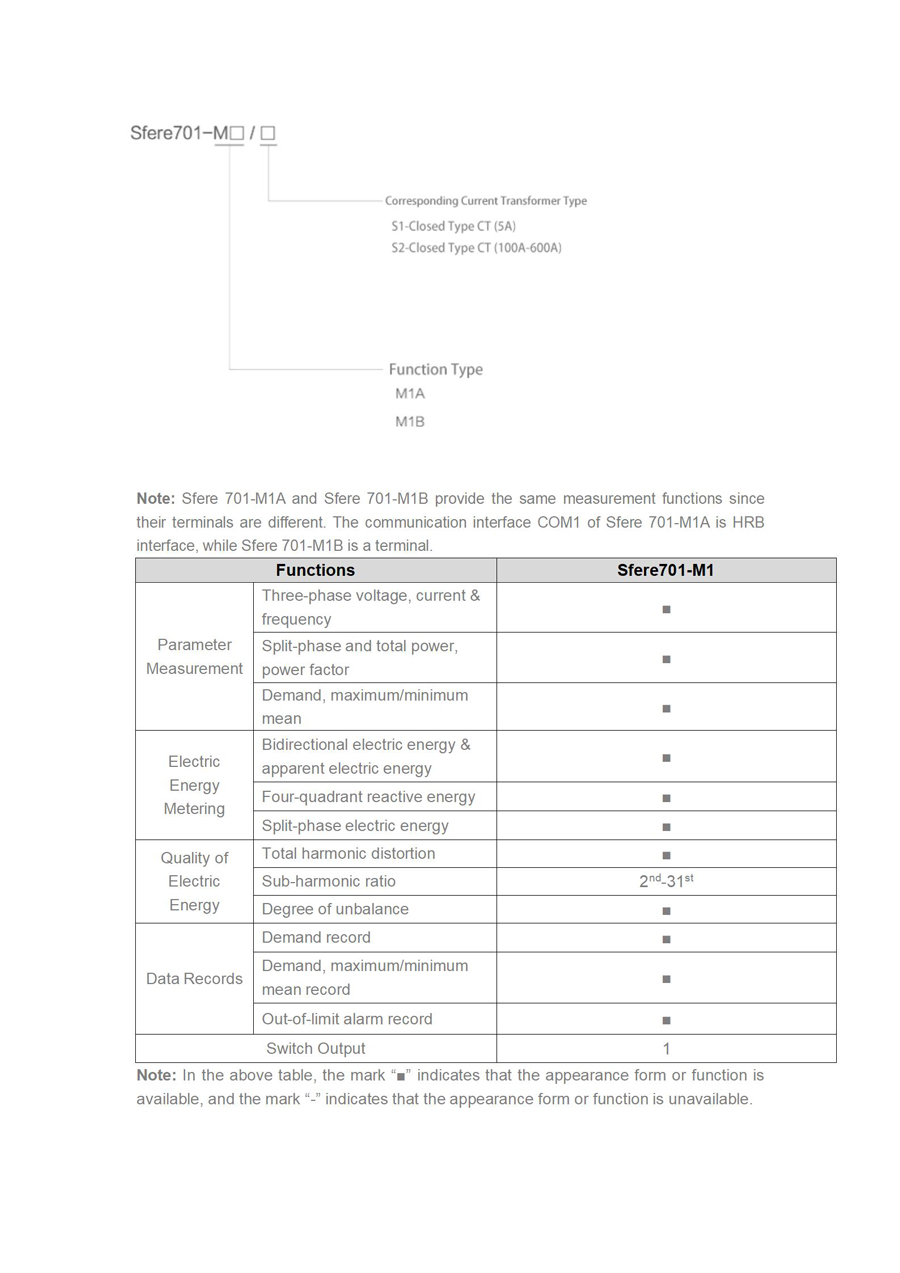

Rack Bus Monitoring Unit Sfere701 Model Selection

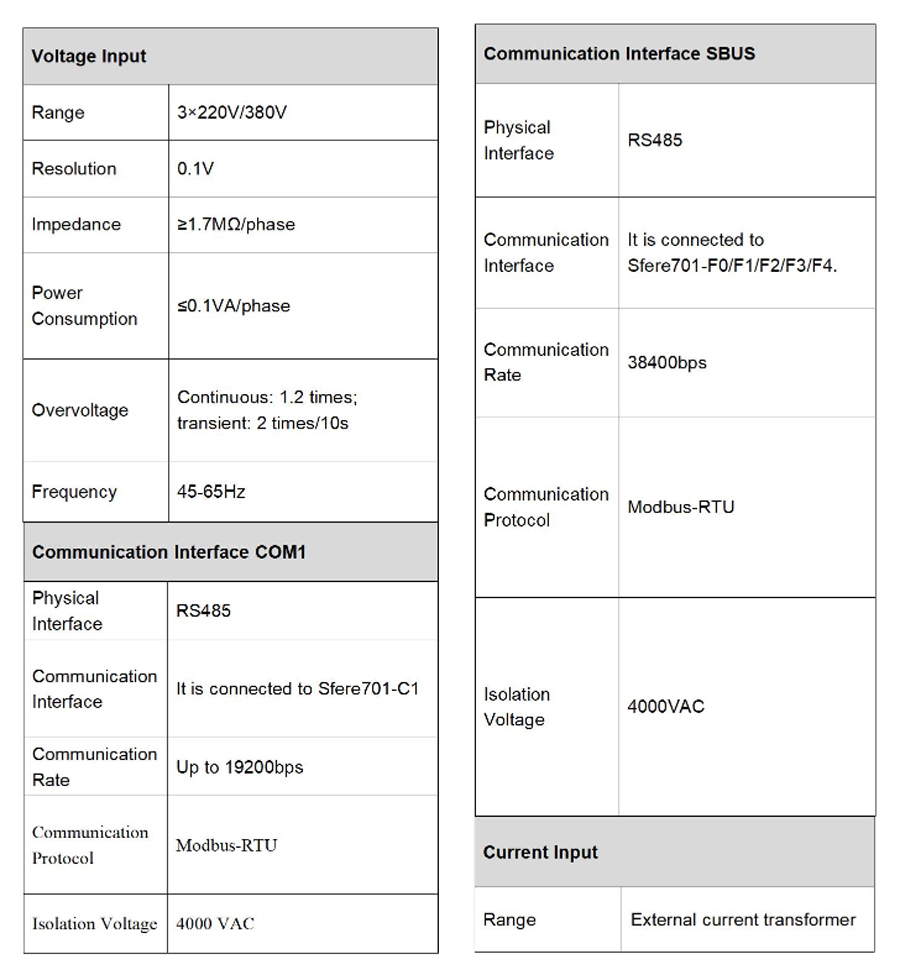

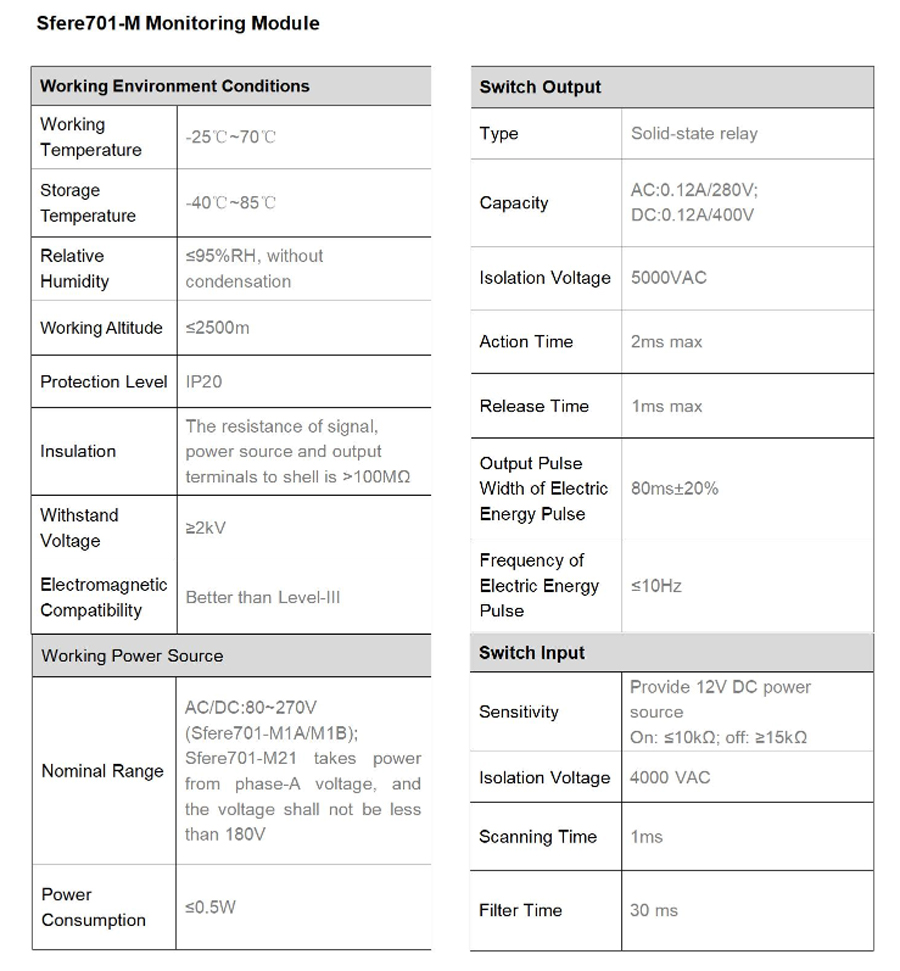

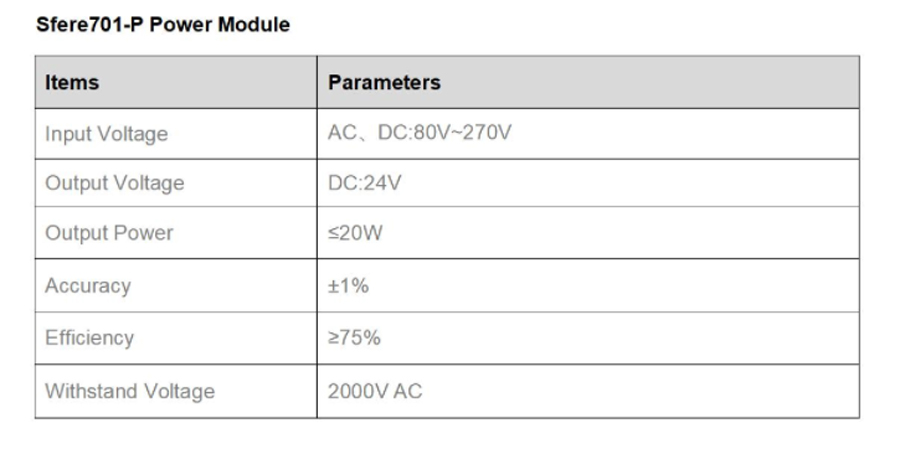

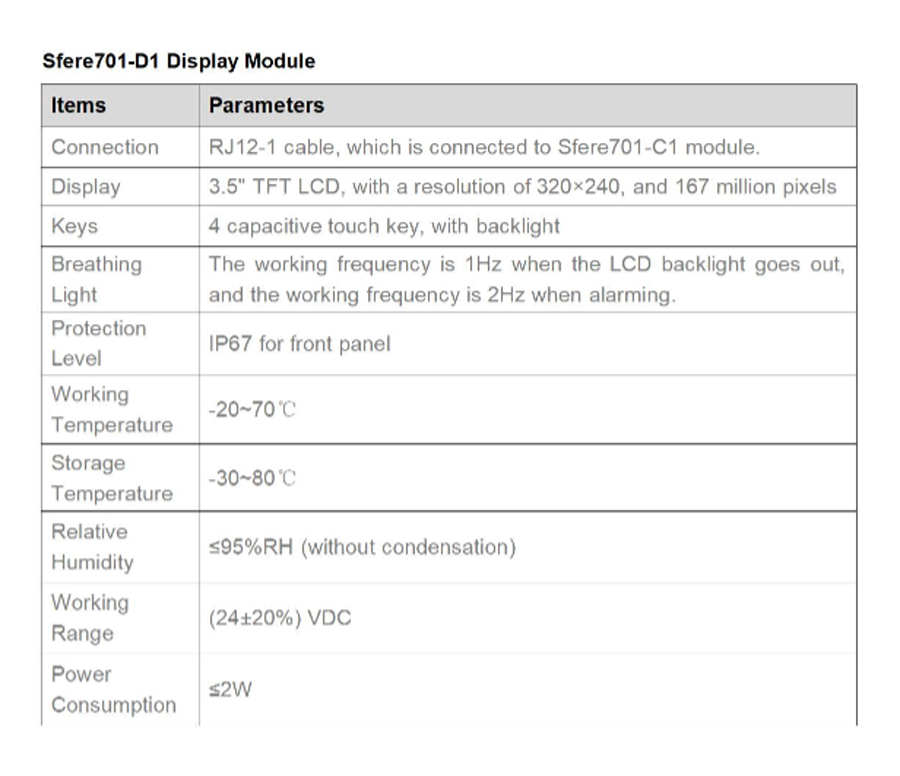

Rack Bus Monitoring Unit Sfere701 Technical Specification

Rack Bus Monitoring Unit Sfere701 Technical Specification 2

Rack Bus Monitoring Unit Sfere701 Technical Specification 3

Rack Bus Monitoring Unit Sfere701 Technical Specification 4

Rack Bus Monitoring Unit Sfere701 Technical Specification 5

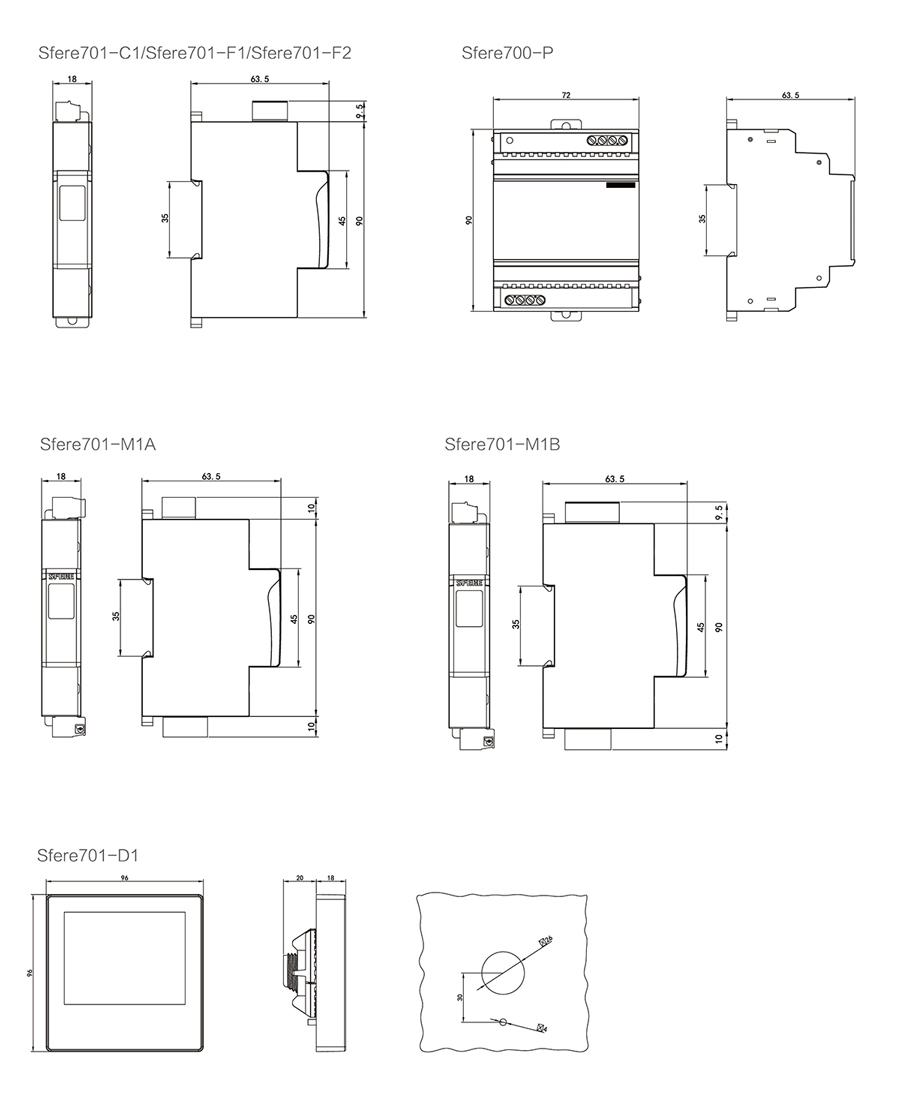

Rack Bus Monitoring Unit Sfere701 Dimension
