JIANGSU ELECNOVA ELECTRIC CO., LTD.
PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger

PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger

Introduction

As one of electrical power monitoring systems, PD195Z-CD32F DC energy meter is applicable to DC chargers. It support measure the voltage, current, power and other parameters of dual DC circuits, provide accurate metering function, and has RS485 communication interface to realize remote data transmission.

PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger Feature
Feature
Communication Protocol:Modbus-RTU
IP Degree:IP54
Energy metering
High precision measurement
Technical Specification
Dimension
Typical Wiring

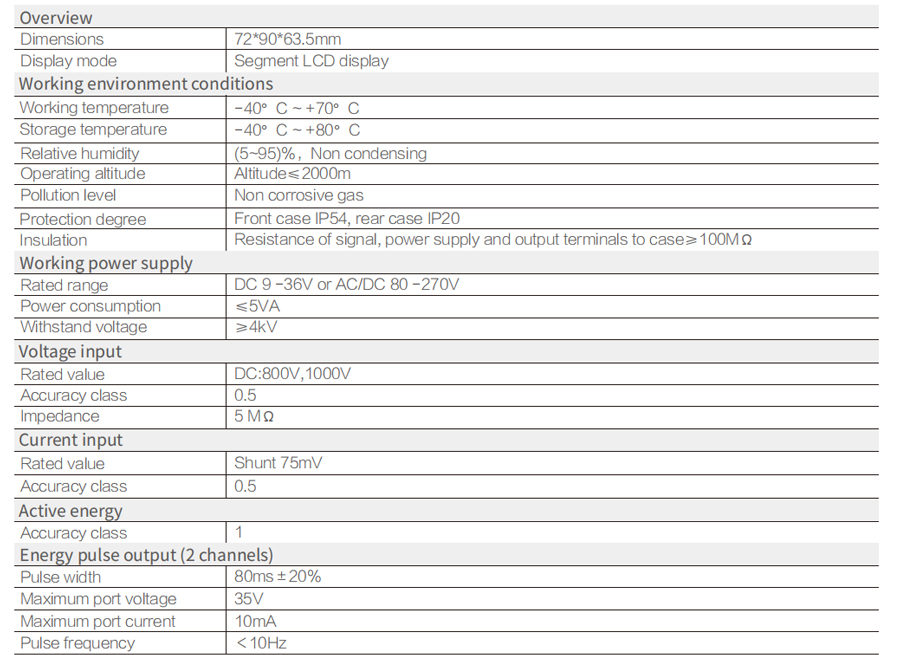

PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger Technical Specification

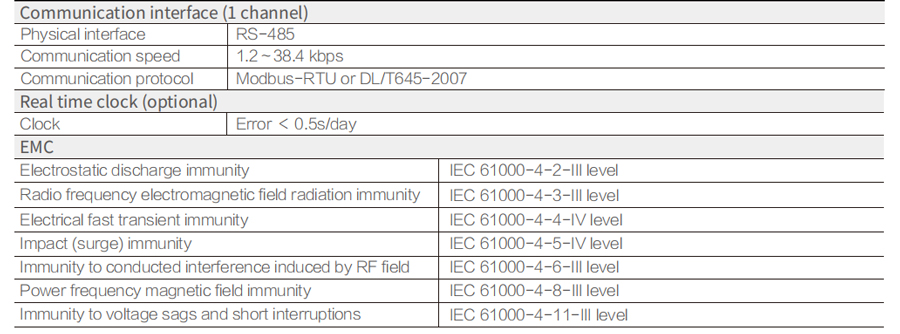

PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger Technical Specification 2

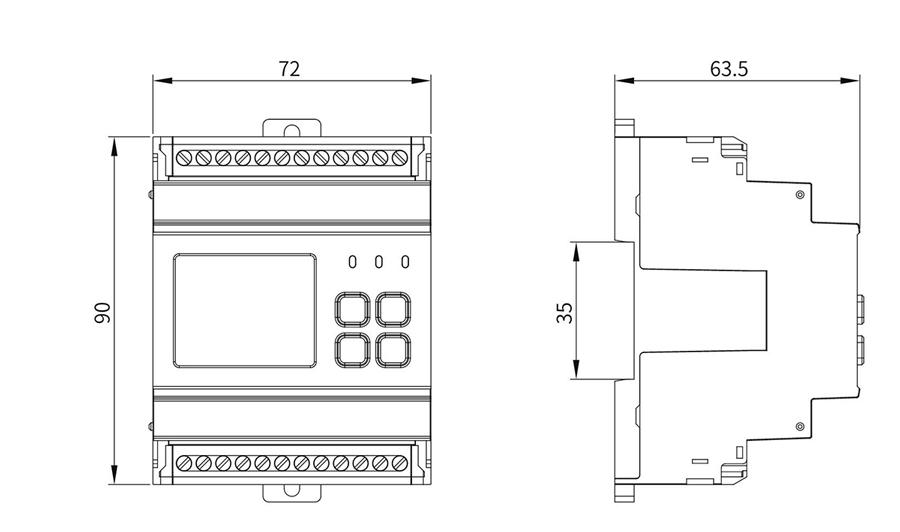

PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger Dimension

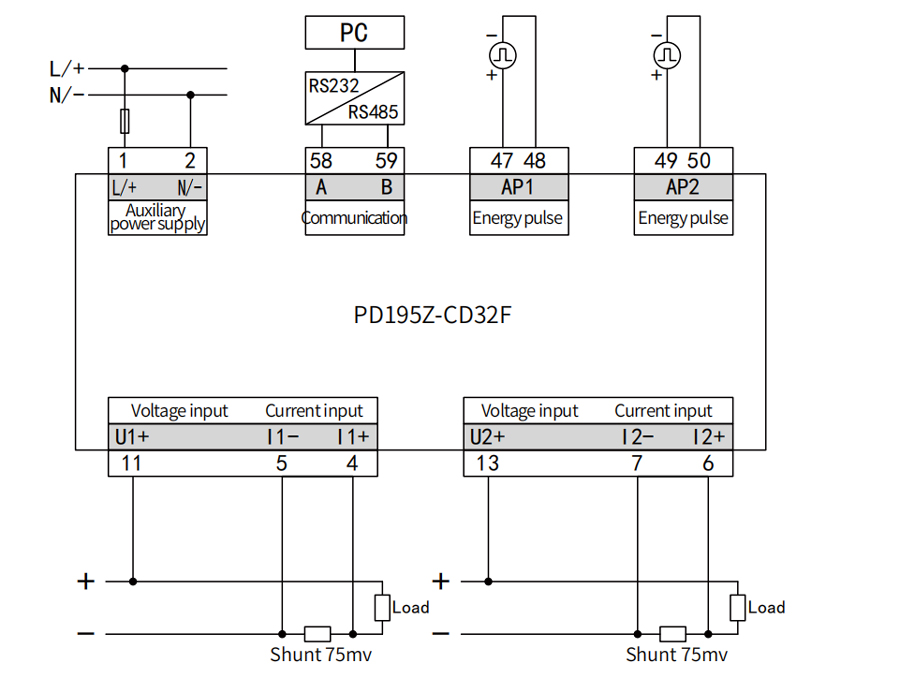

PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger Typical Wiring

PD195Z-CD32F DC DIN-rail Mounted Energy Meter for EV Charger Typical Wiring 2
