LNF Series AC Three-phase Multi-functional Power Meter

LNF Series AC Three-phase Multi-functional Power Meter

Introduction

LNF series AC multi-function power instruments are high-precision and reliable intelligent power distribution instrument products designed for power system, industrial and mining enterprises, public facilities, intelligent buildings and other applications of power monitoring, intelligent control, measurement and assessment. This series of instruments has the functions of full power parameter measurement, electric energy measurement and power quality monitoring, has RS485 communication interface, supports Modbus RTU and DL/T645 communication protocols.

LNF Series AC Three-phase Multi-functional Power Meter Feature
Feature
Full electricity measurement
3.5 inch large screen LCD display
0.5S level active electric energy metering
Voltage rise and drop
Fault record
2-31st THD monitoring

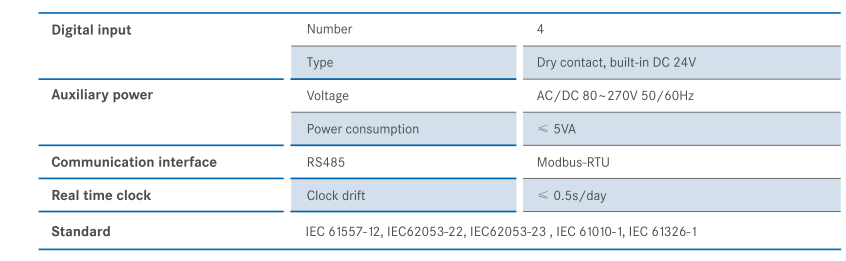

Technical Specification

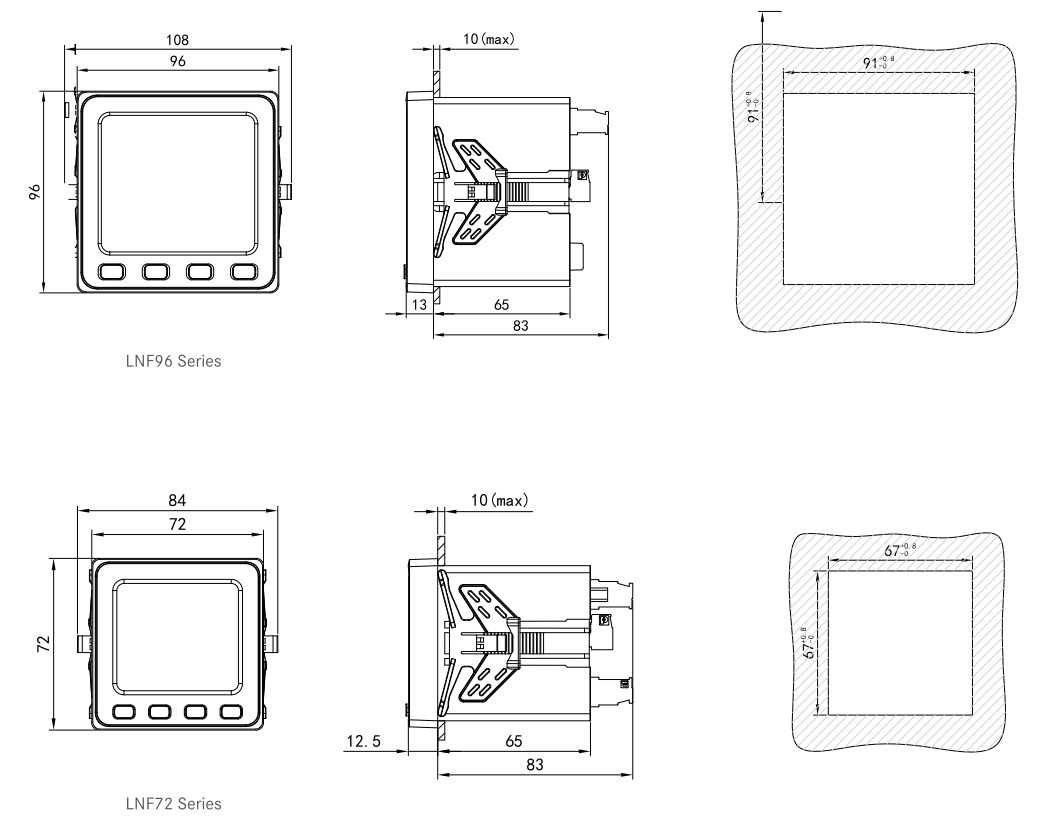

Dimension

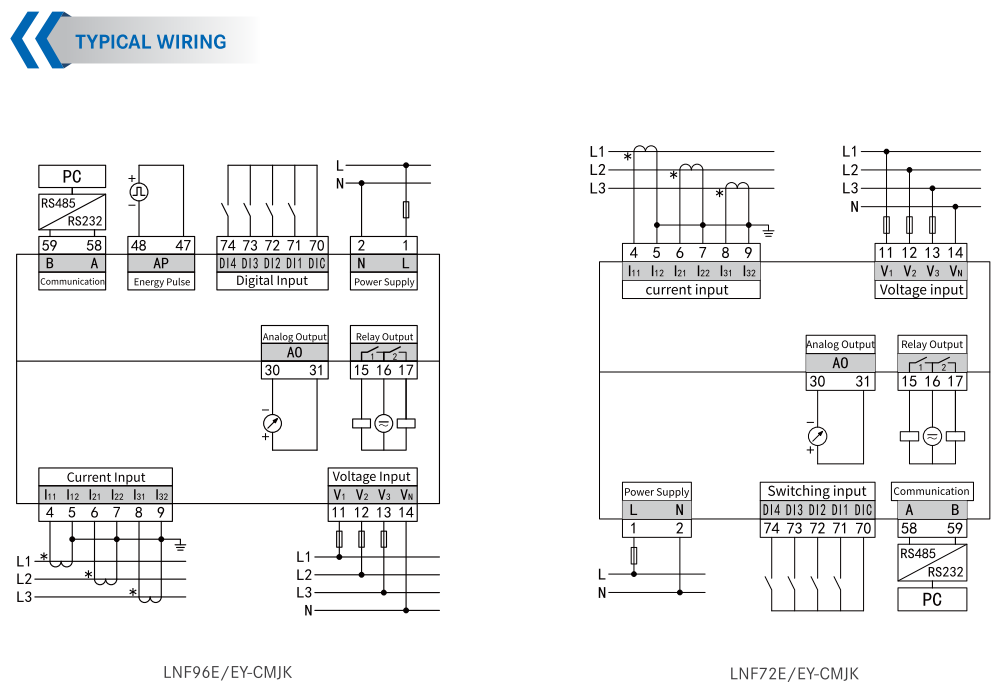

Typical Wiring

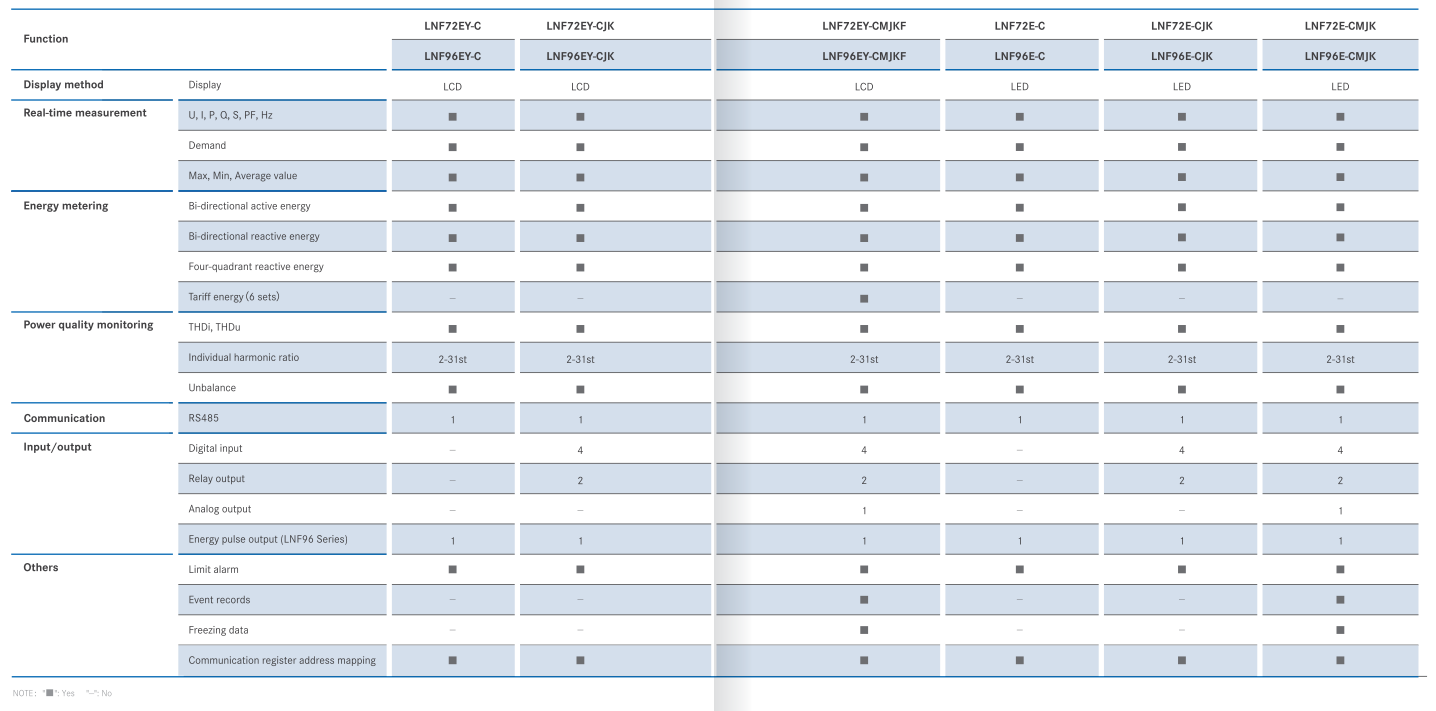

Models
