DIN-rail Mounted Type Power Meter

DIN-rail Mounted Type Power Meter

Introduction

The DIN-rail mounted energy meter is designed and manufactured with advanced energy metering chip, digital sampling processing technology and SMT processing technology. This series of energy meters adopt modular structure, which is convenient to install and reliable to operate.

DIN-rail Mounted Type Power Meter Feature
Feature
Up in down out
Multi tariffs
Bi-directional energy measurement
Event record
Programmable parameters
Technical Specification
Model Selection
Dimension
Typical Wiring

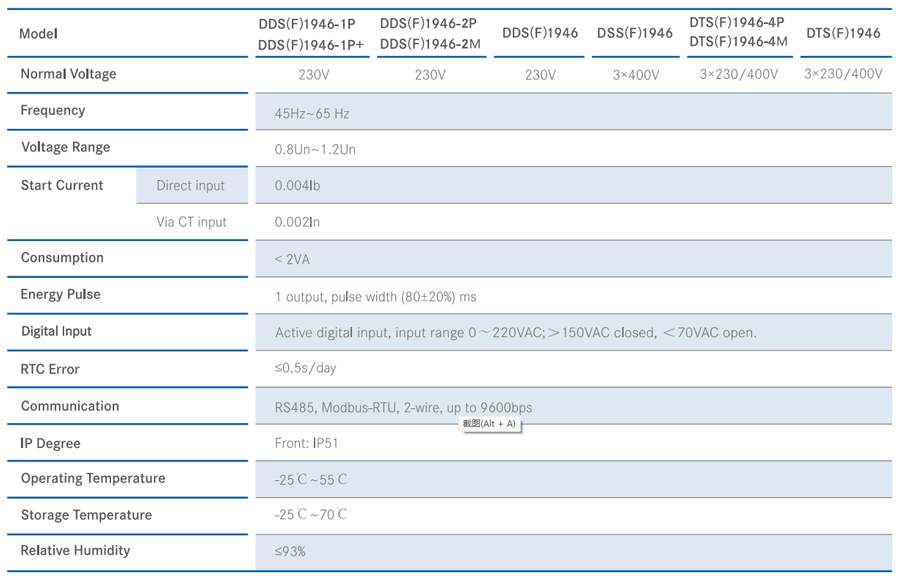

DIN-rail mounted Energy Meters Technical Specification

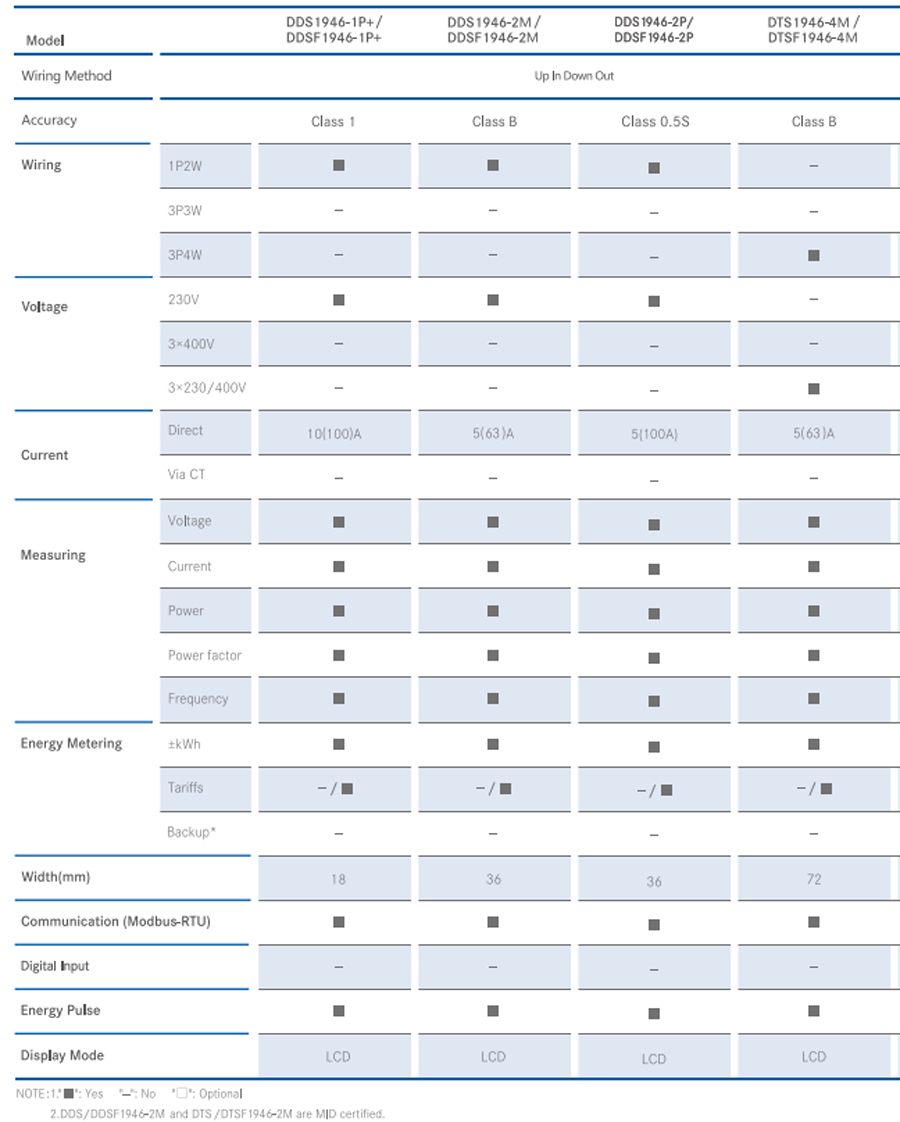

DIN-rail mounted Energy Meters Model Selection

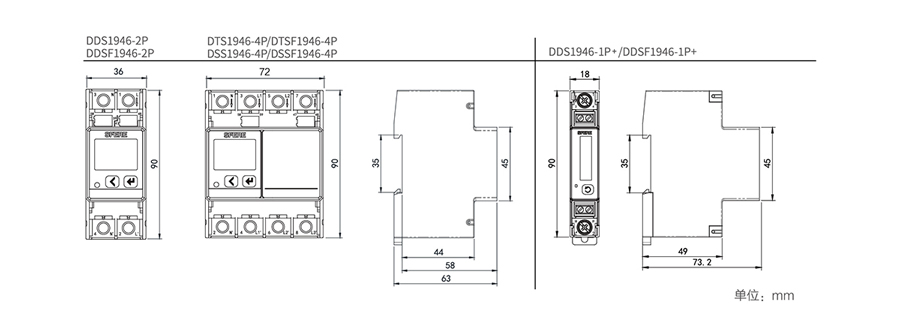

DIN-rail mounted Energy Meters Dimension

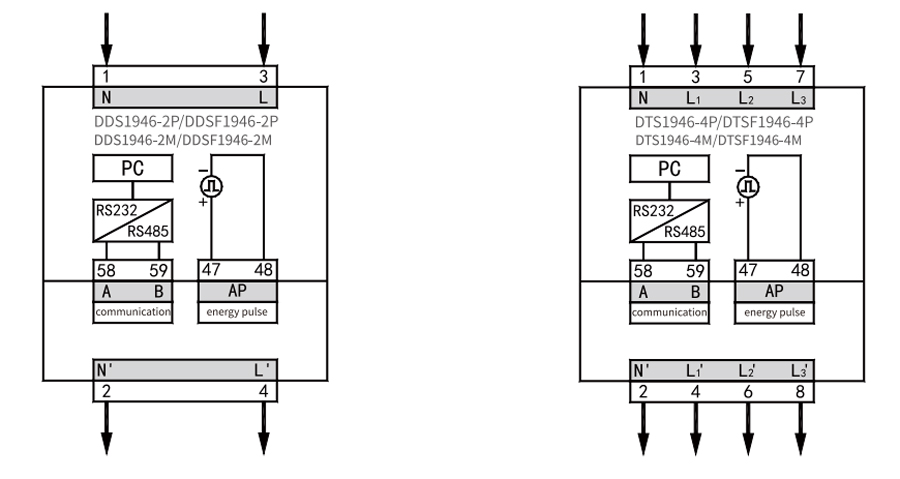

DIN-rail mounted Energy Meters Typical Wiring

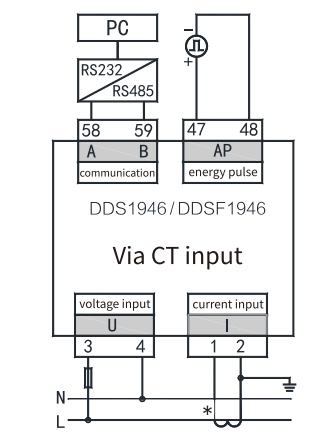

DIN-rail mounted Energy Meters Typical Wiring 2

DIN-rail mounted Energy Meters Typical Wiring 3
