DC Precision Power Distribution Monitoring Unit

DC Precision Power Distribution Monitoring Unit

Introduction

BCM201 series is DC measurement.The BCM series precision power distribution monitoring unit is used to monitor the power operation parameters of the AC/DC array cabinet in the data center, measure the voltage, current, electric energy, harmonic and other electrical parameters of the incoming line and feeder branch, as well as the switching status of all circuit breakers. It has the tripping alarm function. Each output circuit has two levels of user settable over-current alarm to prevent potential power failure. The product is equipped with a 7-inch color LCD touch screen.

DC Precision Power Distribution Monitoring Unit Feature
Feature
Flexible and convenient installation
With alarm function
Convenient interaction
Technical Specification
Product Component
Typical Wiring

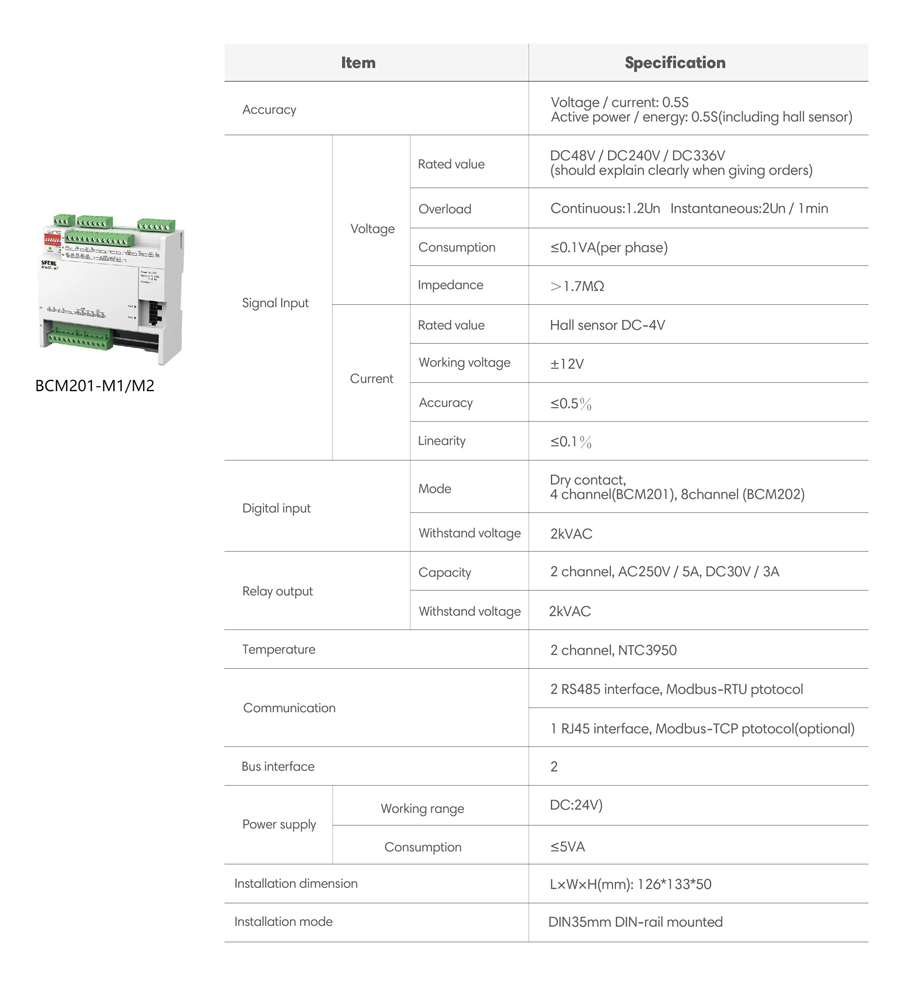

DC Precision Power Distribution Monitoring Unit Technical Specification

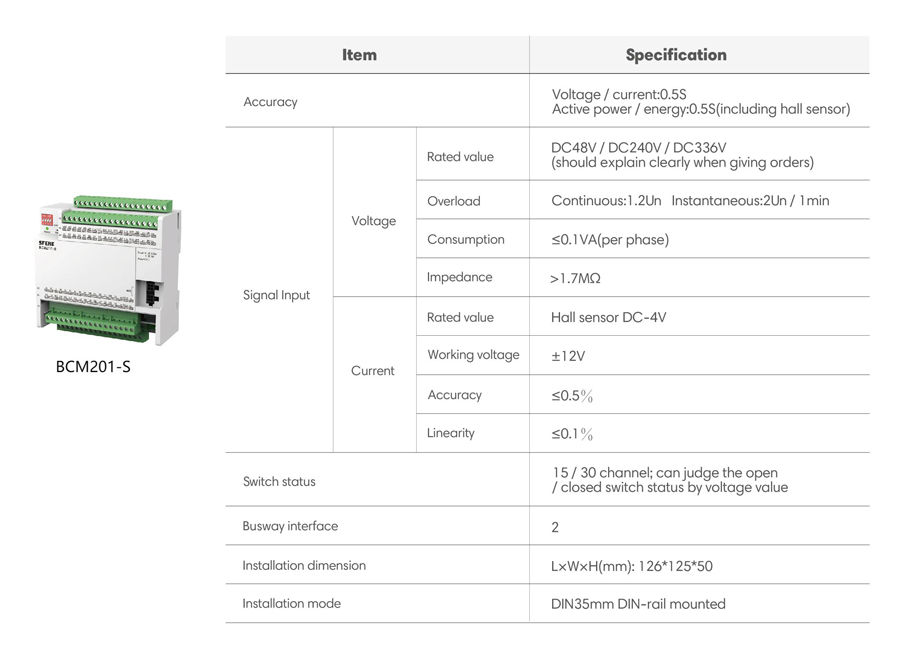

DC Precision Power Distribution Monitoring Unit Technical Specification 2

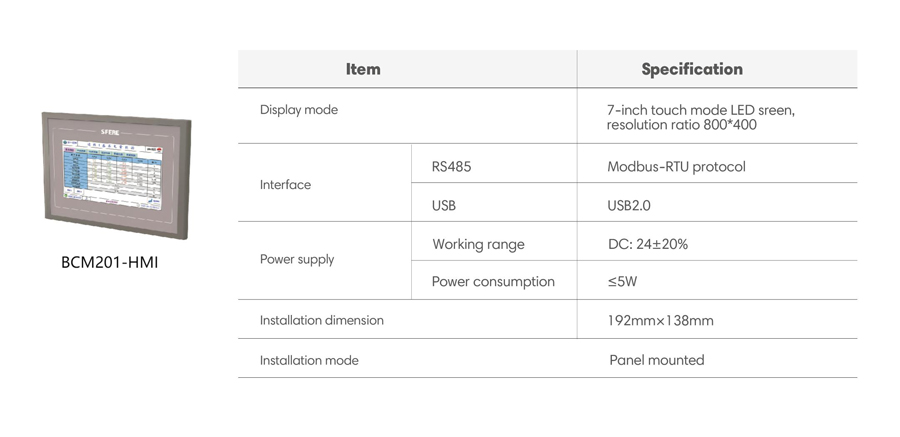

DC Precision Power Distribution Monitoring Unit Technical Specification 3

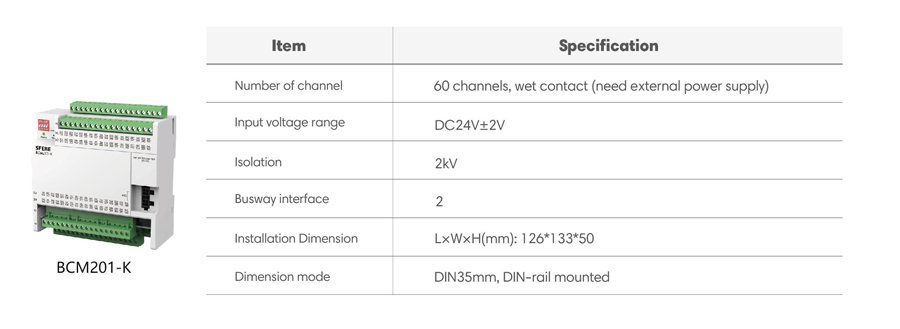

DC Precision Power Distribution Monitoring Unit Technical Specification 4

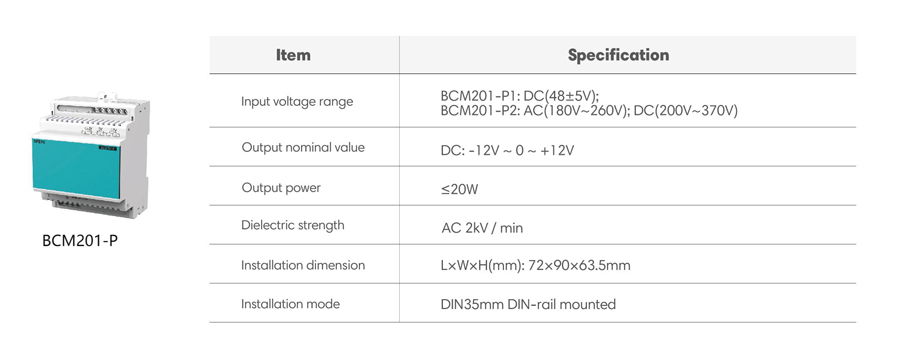

DC Precision Power Distribution Monitoring Unit Technical Specification 5

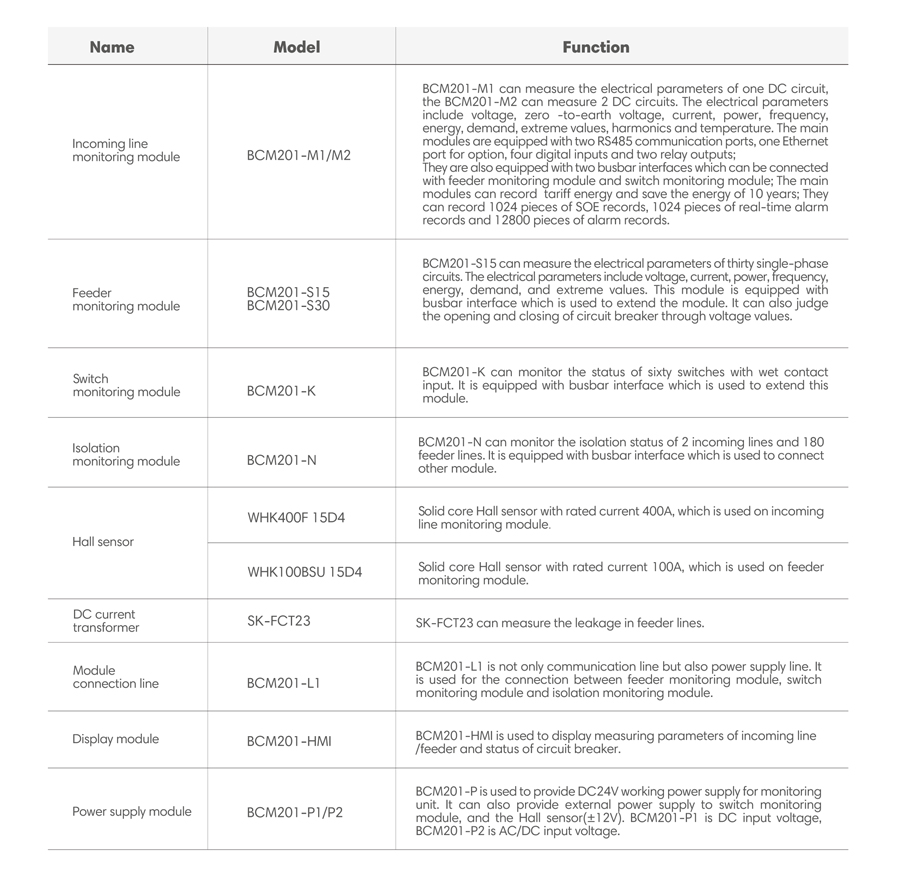

DC Precision Power Distribution Monitoring Unit Product Component

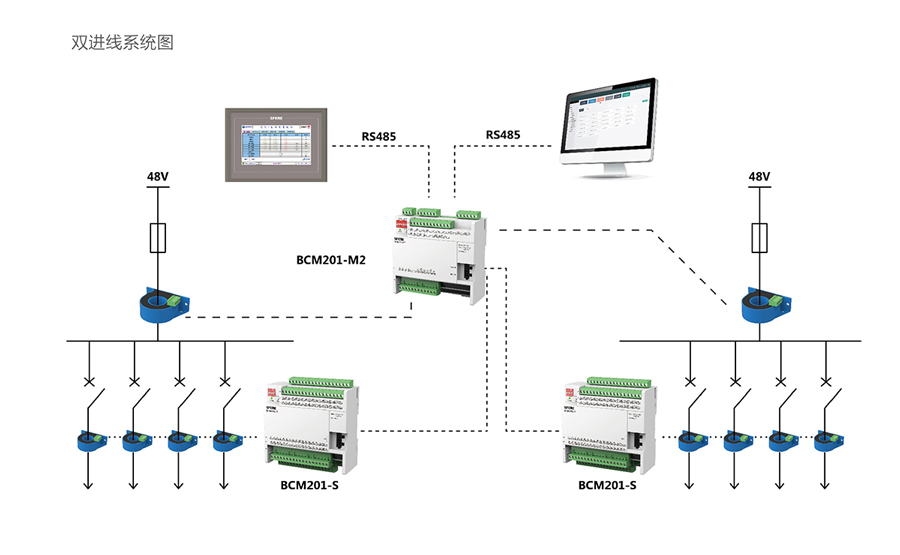

DC Precision Power Distribution Monitoring Unit Typical Wiring
