JIANGSU ELECNOVA ELECTRIC CO., LTD.
DC Multi-circuit Measurement Power Meter

DC Multi-circuit Measurement Power Meter

Introduction

PD195Z-E33 can measure the voltage, current, power and two-way electric energy in the DC system. It is also equipped with RS485 communication interface, which can be easily integrated with various intelligent power distribution systems and energy management systems to share rich monitoring data; The expandable switch input/output module is used for status monitoring and control of field equipment.

DC Multi-circuit Measurement Power Meter Feature
Feature
Easy installation
Historical data record
Multi-circuit measurement
Technical Specification
Dimension
Typical Wiring

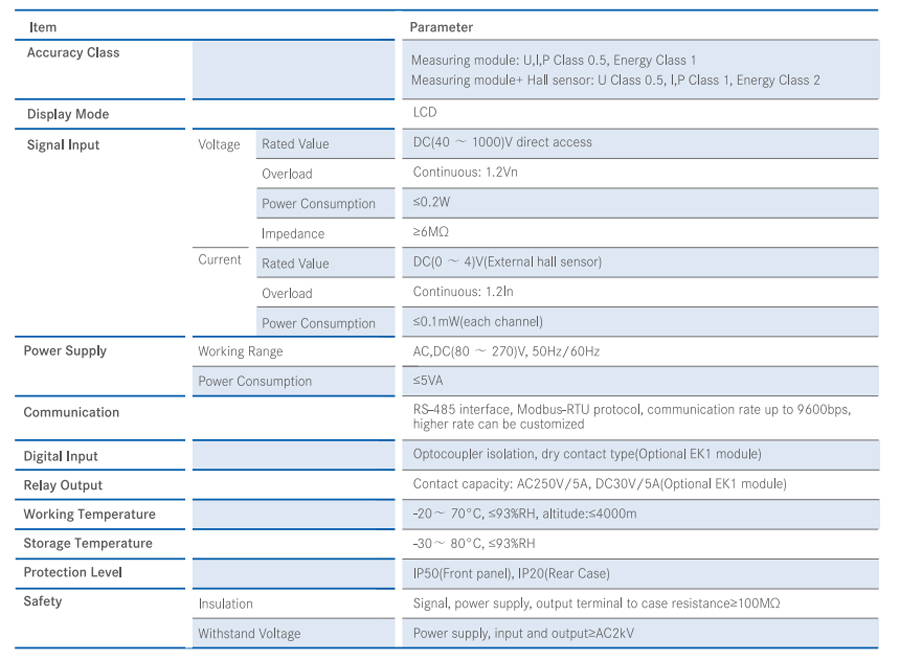

DC Multi-circuit Measurement Power Meter Technical Specification

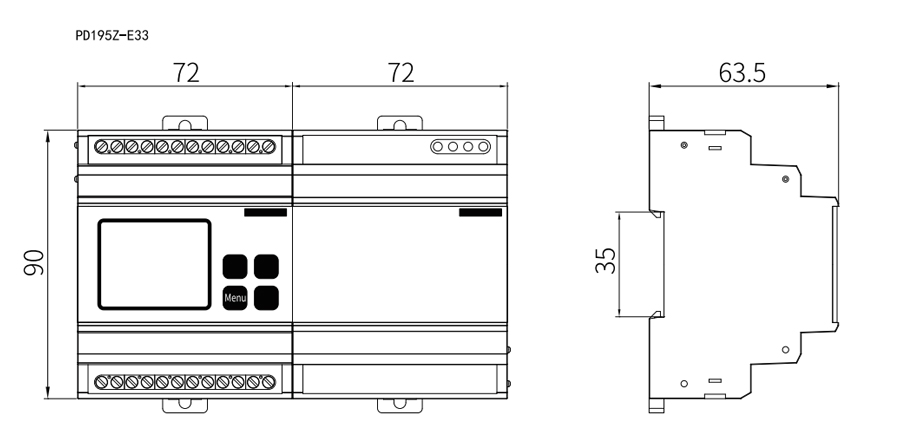

DC Multi-circuit Measurement Power Meter Dimension

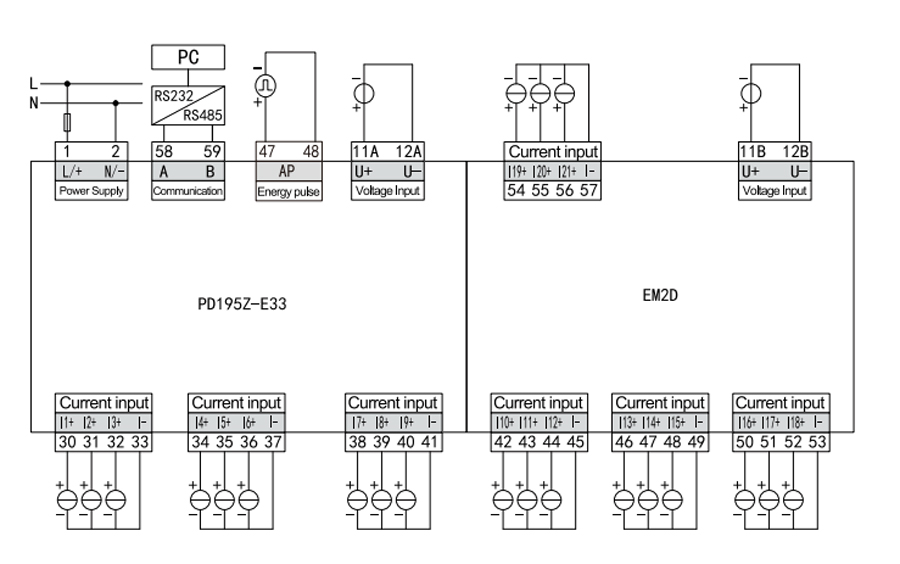

DC Multi-circuit Measurement Power Meter Typical Wiring
