Busway Temperature Monitoring System

Busway Temperature Monitoring System

Introduction

The Elecnova702 bus duct temperature monitoring system consists of a monitoring host and a humidity acquisition module. It is used to measure the low voltage intensive bus duct temperature. The main monitored temperature includes:; The temperature of the bus duct connection (the degree of each phase contact point), the bus duct shell temperature, environmental humidity, etc., and the data display, upload, storage and fault alarm can be carried out in the monitoring unit.

Dimension
Technical Specification
System Structure

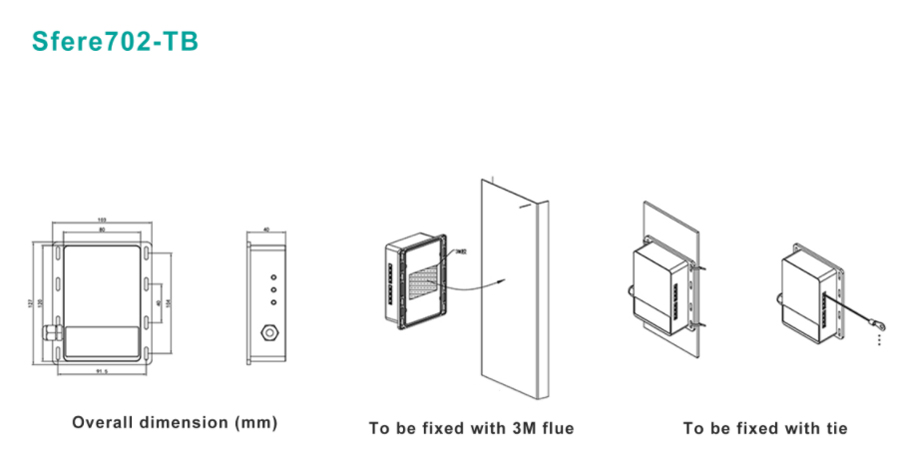

Busway Temperature Monitoring System Dimension

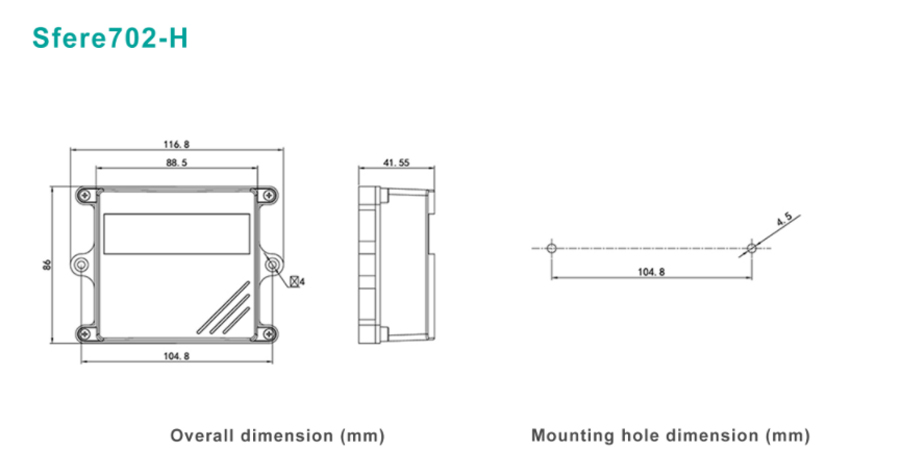

Busway Temperature Monitoring System Dimension 2

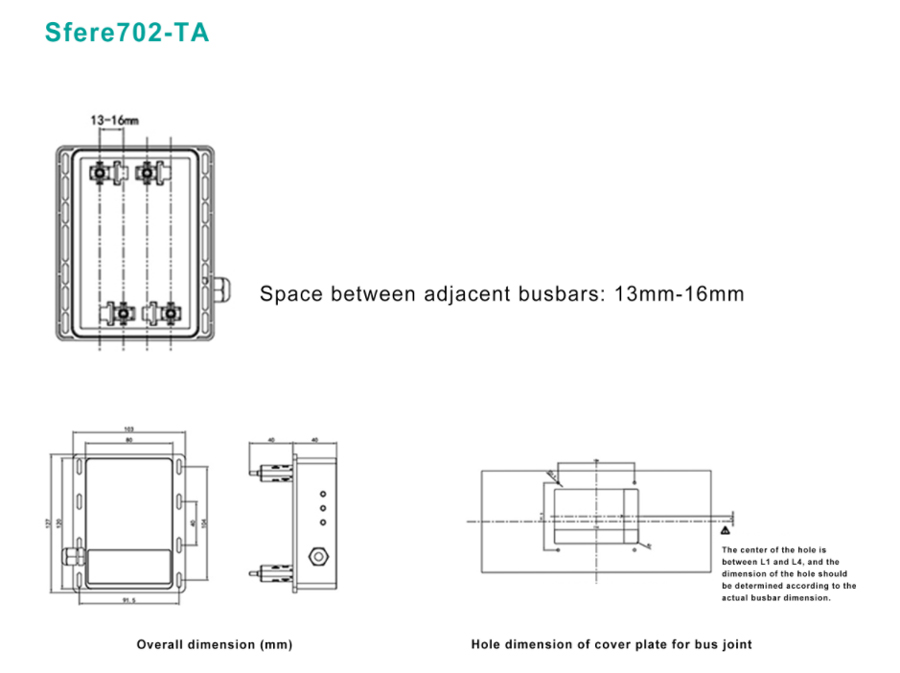

Busway Temperature Monitoring System Dimension 3

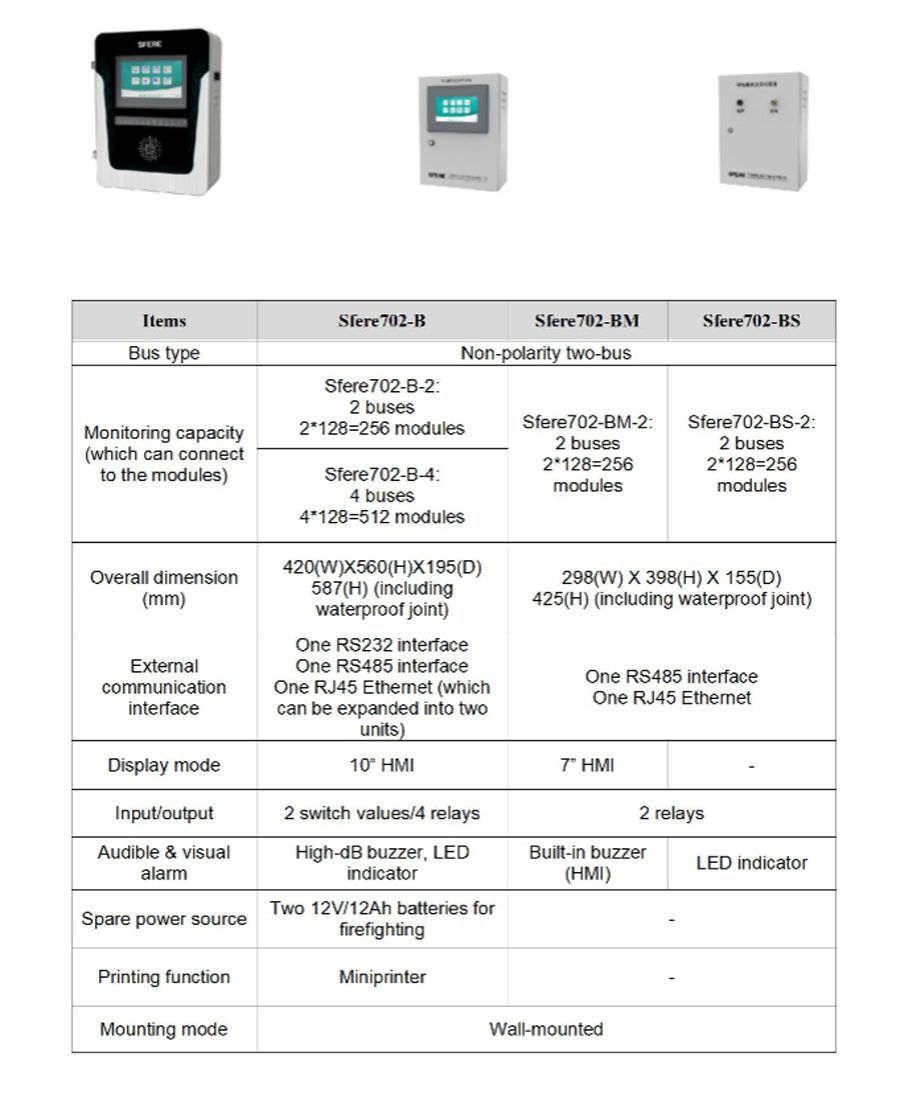

Busway Temperature Monitoring System Technical Specification

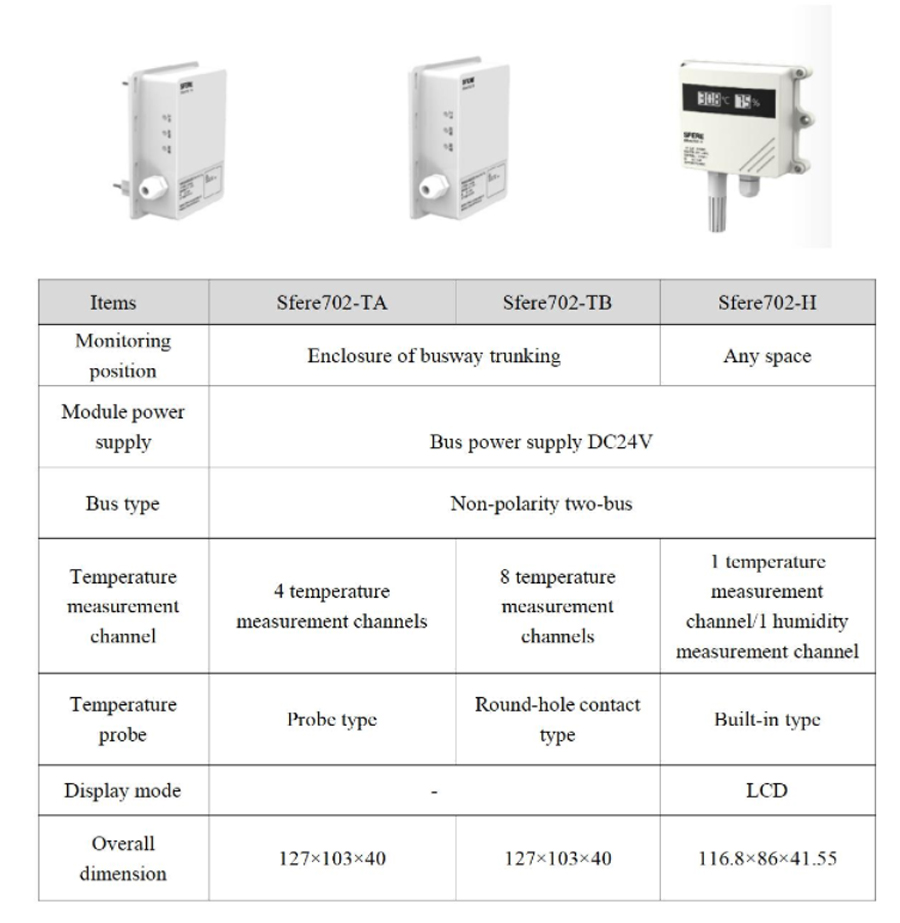

Busway Temperature Monitoring System Technical Specification

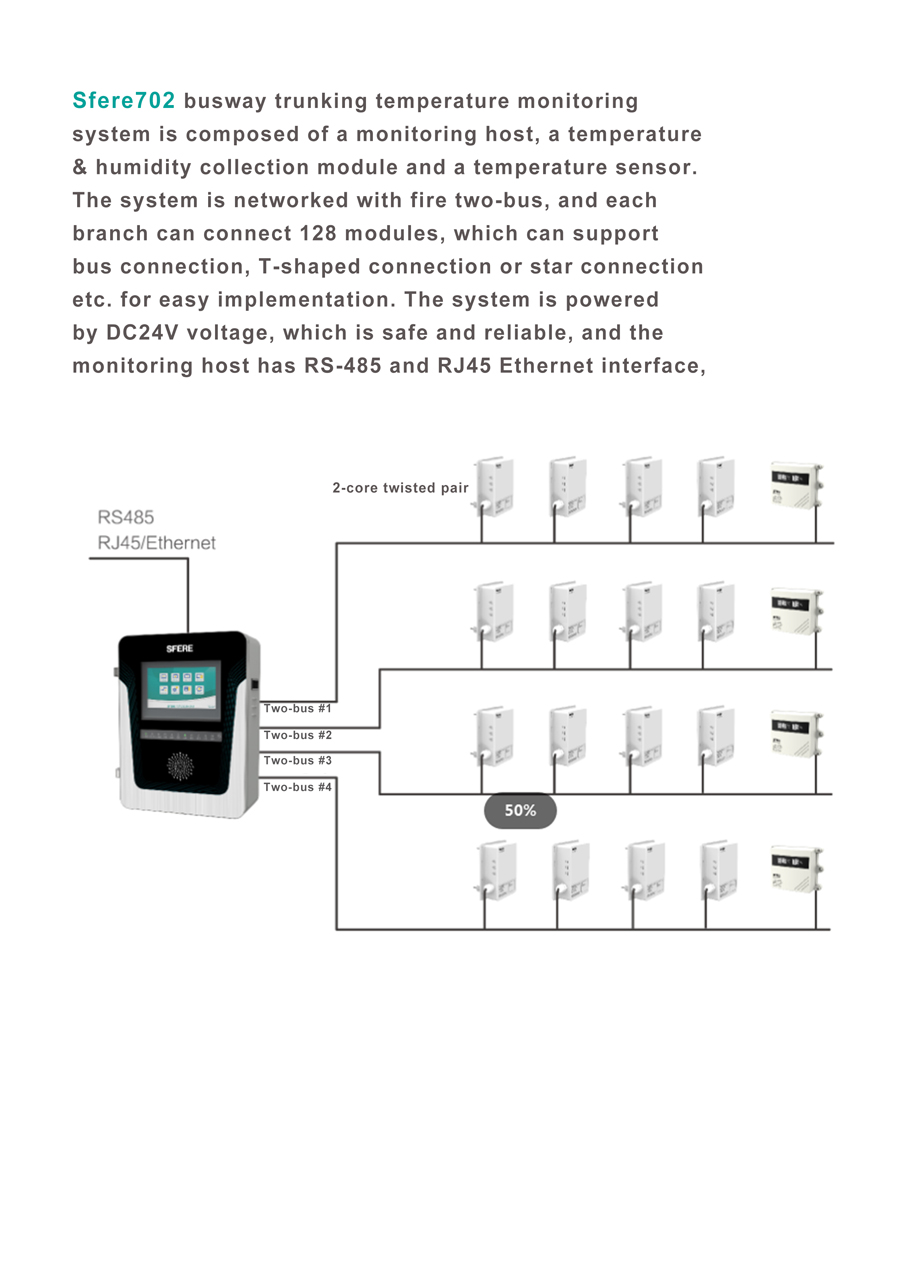

Busway Temperature Monitoring System System Structure
