AC Multi-circuit Measurement Power Meter

AC Multi-circuit Measurement Power Meter

Introduction

PD194Z-E14 series multi circuit power instruments are rail mounted, which can measure 4-circuit three-phase or 12 circuit single-phase power parameters. Switching value modules can be optionally configured to realize switching status detection, out of limit alarm and other functions.

AC Multi-circuit Measurement Power Meter Feature
Feature
Easy installation
Modular design
Multi loop measurement
Technical Specification
Model Selection
Dimension
Typical Wiring

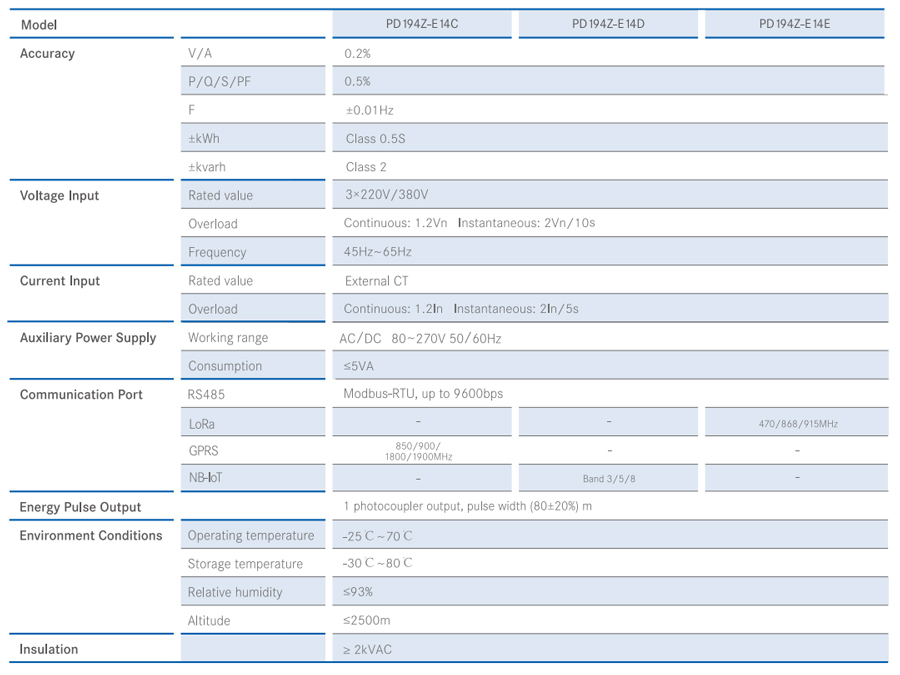

AC Multi-circuit Measurement Power Meter Technical Specification

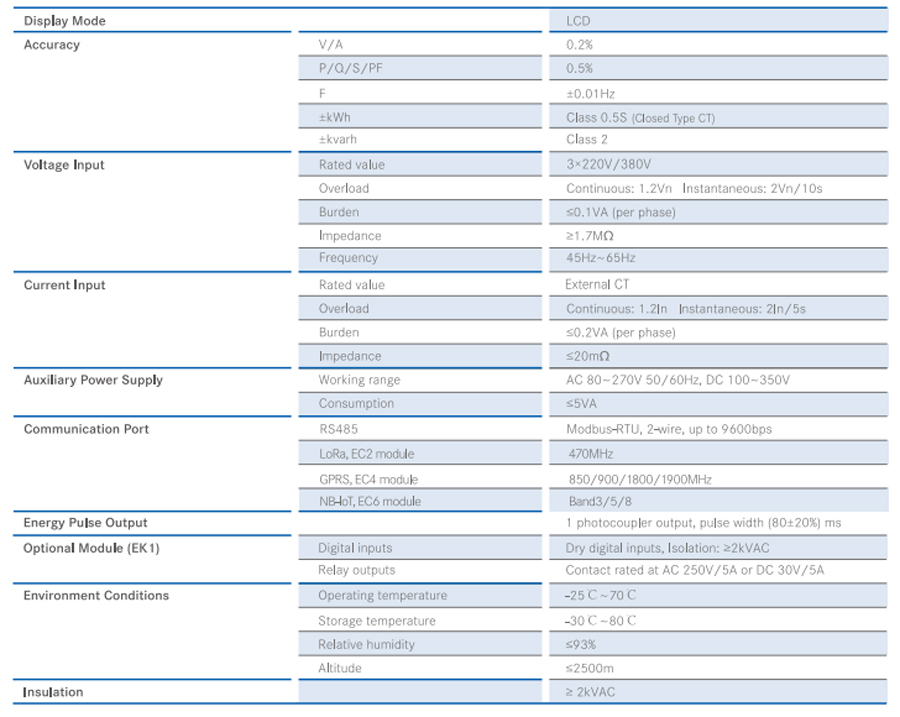

AC Multi-circuit Measurement Power Meter Model Selection

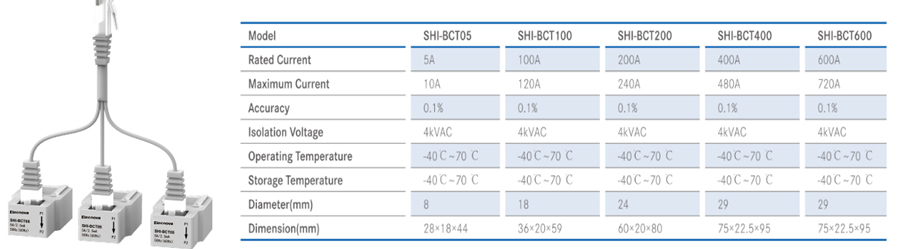

AC Multi-circuit Measurement Power Meter Model Selection 2

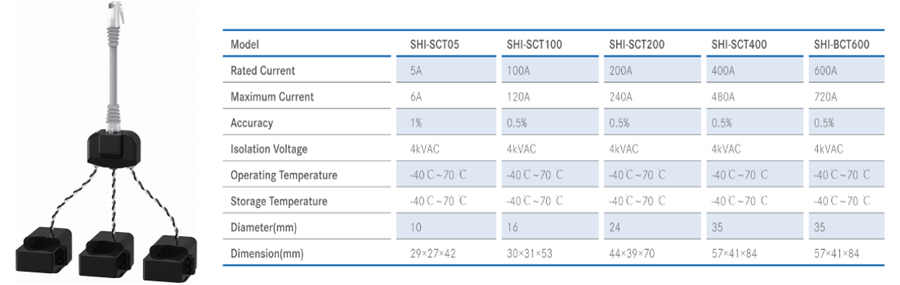

AC Multi-circuit Measurement Power Meter Model Selection 3

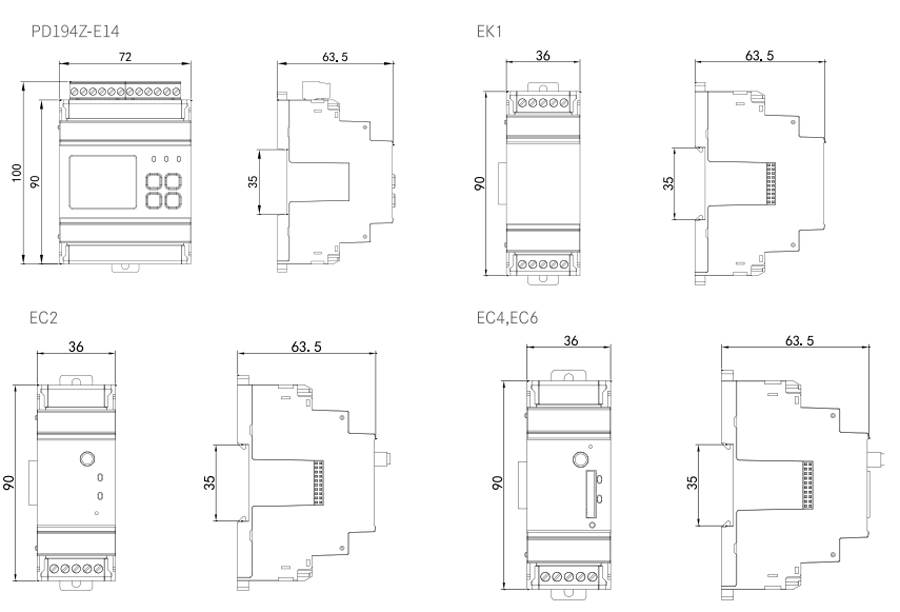

AC Multi-circuit Measurement Power Meter Dimension

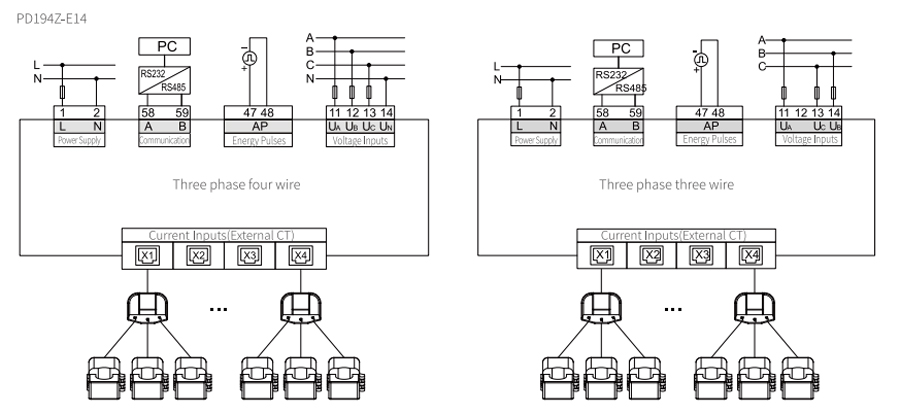

AC Multi-circuit Measurement Power Meter Typical Wiring

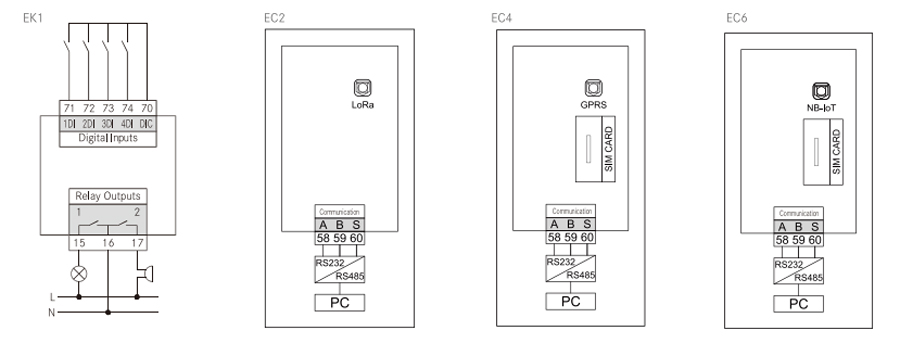

AC Multi-circuit Measurement Power Meter Typical Wiring 2
